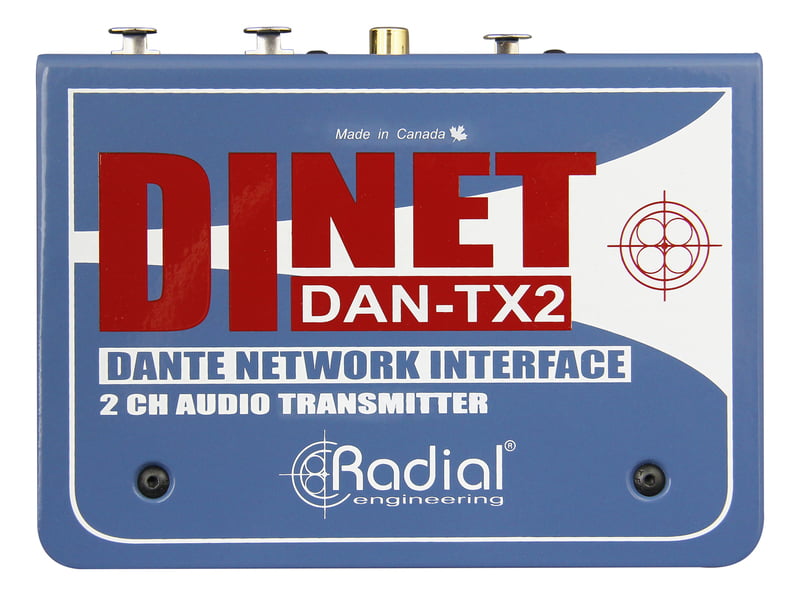

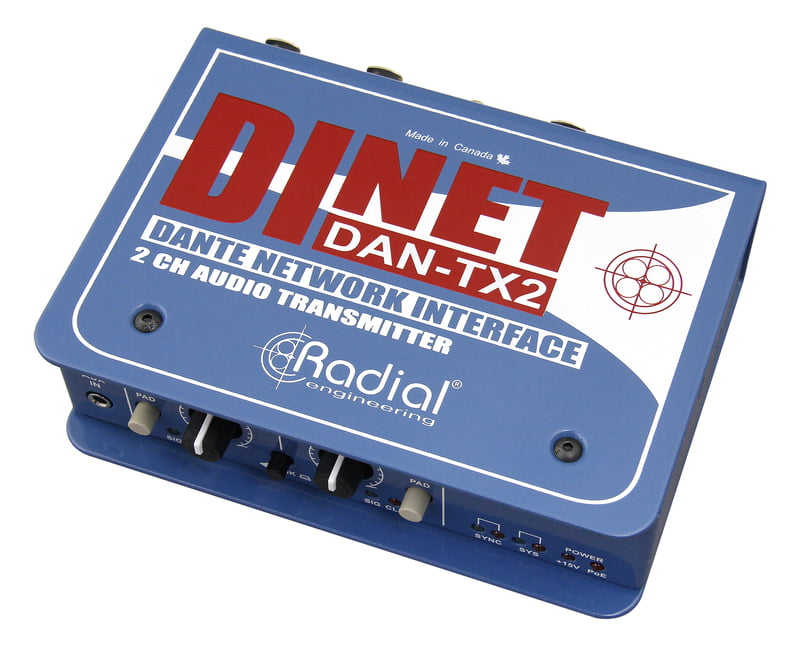

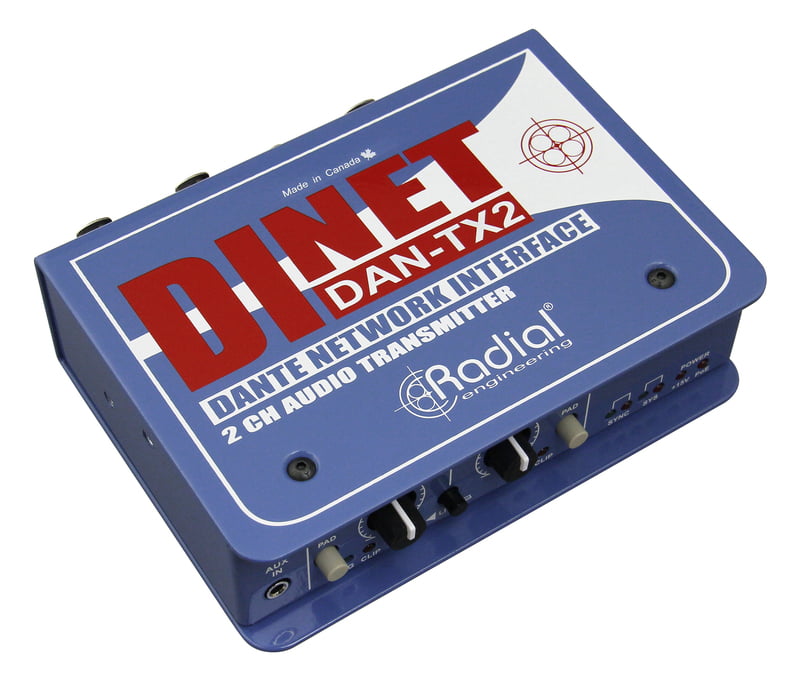

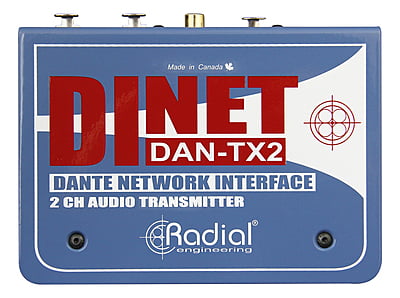

Radial Engineering DiNet DAN-TX2
The DAN-TX2 is a 2-Channel analog-to-digital converter that allows you to connect any line level source to a Dante or AES67-compliant network.
Product ID: DiNet DAN-TX2
Non-returnable
GH¢12,284.95
EASY PAYMENT
MATCH EVERY PRICE
CUSTOMER SUPPORT
Choose Quantity
Talk to our product specialist
Product Details
Specifications

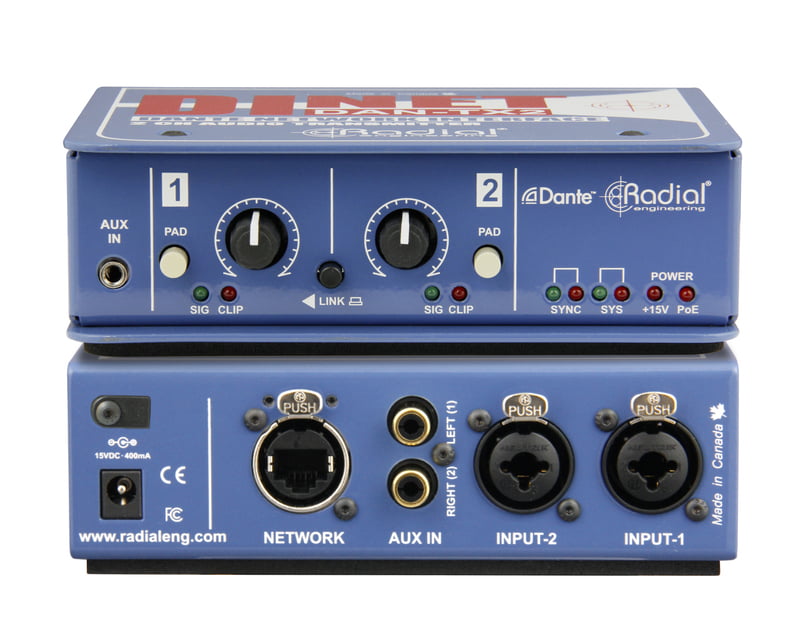

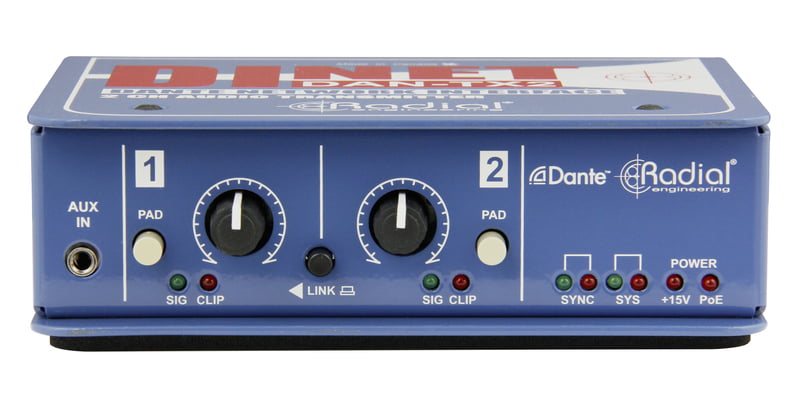

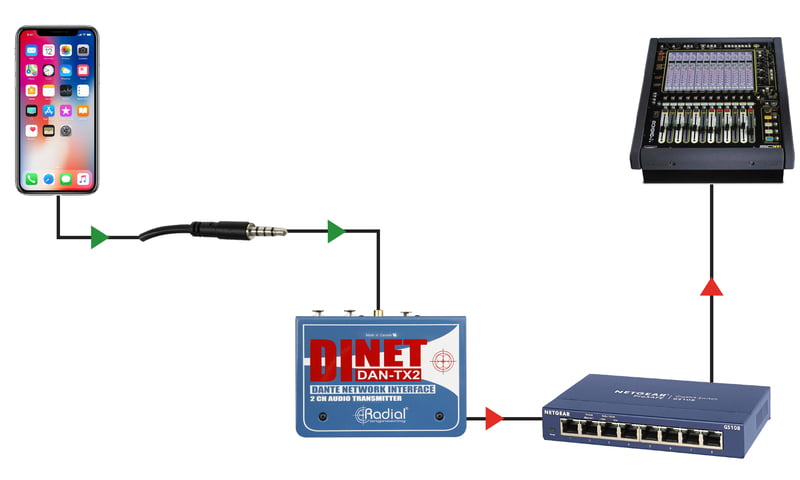

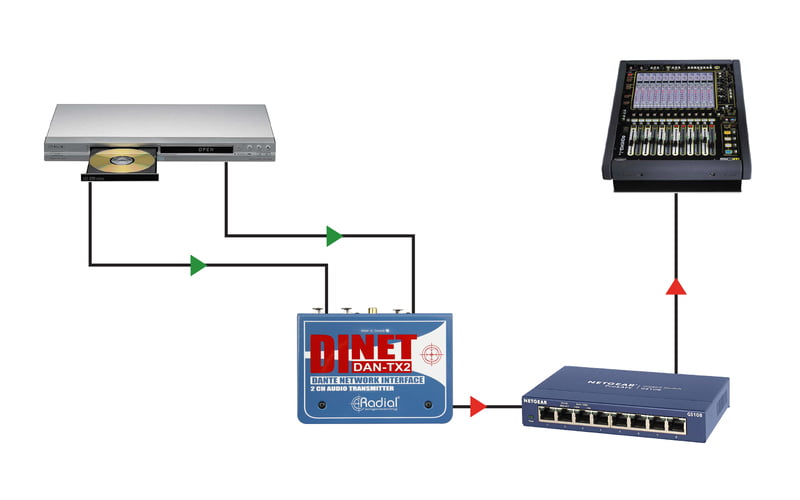

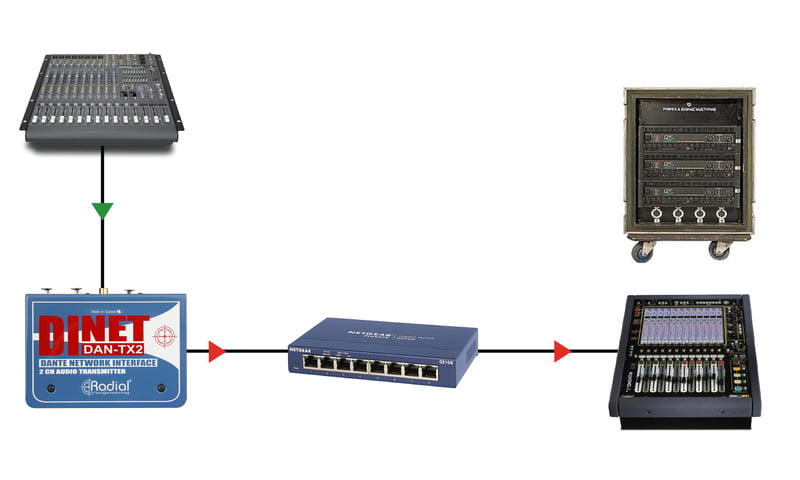

The DiNET DAN-TX2 makes it easy to transmit two channels of high quality analog audio over a Dante or AES67-compliant network. Multiple input options are provided, with Balanced XLR/TRS connectors for professional audio sources, RCA jacks for line level consumer devices, and a 3.5mm aux input for connection to laptops, smartphones, and tablets. Trim controls and pad switches are included for each channel, with a link switch to simplify control for stereo sources. The RJ45 network connection is compatible with Neutrik etherCON connector carriers to prevent accidental disconnection and protect cable terminations, and redundant powering is available for critical applications by using the included external power supply and Power over Ethernet (PoE) simultaneously. The DAN-TX2 can be mounted in 19" equipment racks with the optional SA series rackmount adaptor kit.
Electrical Specifications
- Frequency Response20Hz-20kHz
- Dynamic Range103dB
- Total Harmonic Distortion0.008%
- Input Impedance40kOhm (Balanced); 20kOhm (Unbalanced)
- Maximum Input28dBu
- Power15VDC 400mA (included) or PoE
Physical Specifications

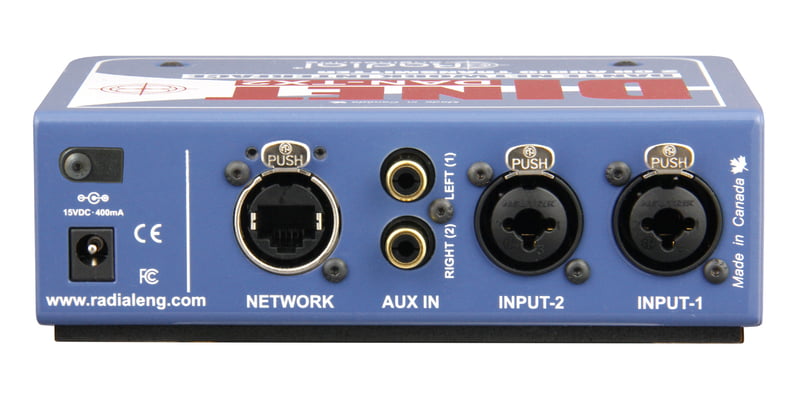

- Input Connectors2x XLR/TRS combo, 3.5mm TRS, 2x RCA
- Number of ChannelsDual channel (stereo)
- Construction14-gauge steel
- Dimensions (L x W x D)4.5” x 2” x 6” (121 x 6 x 147mm)
- FinishDurable powder coat
