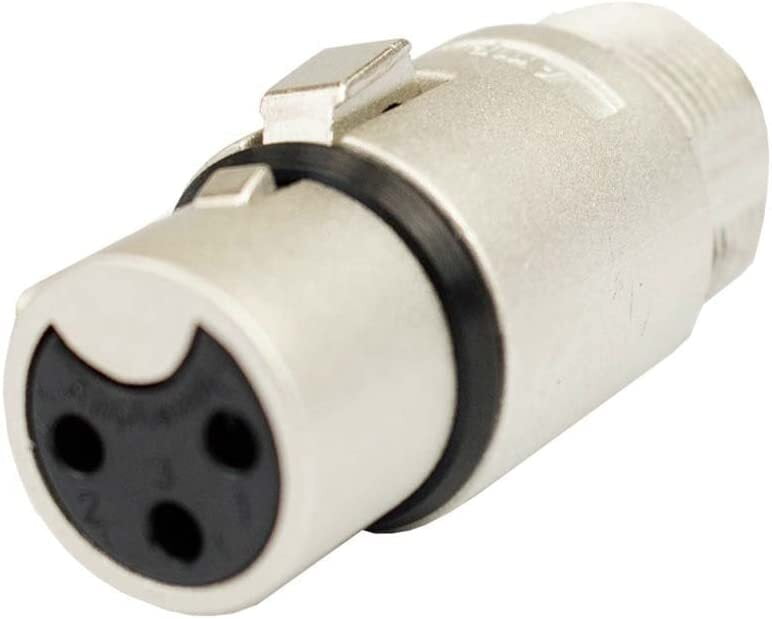

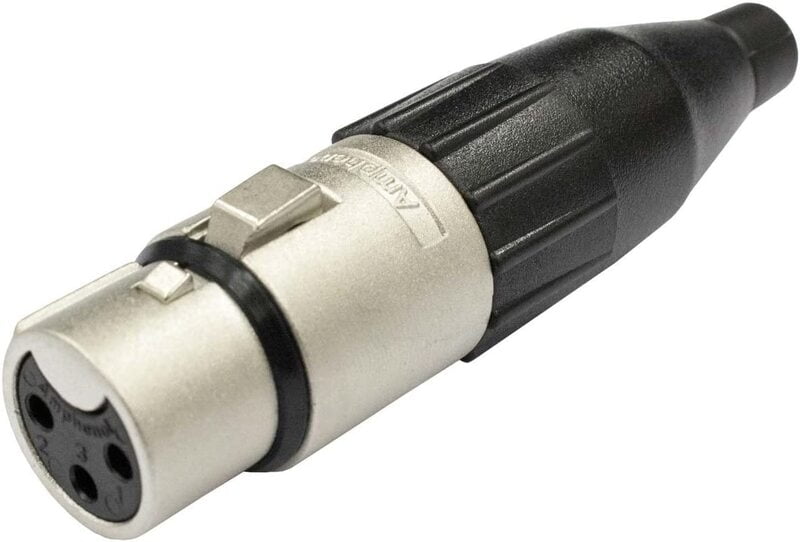

Amphenol AC3F
XLR connector with “Jaws” cable retention system.
Product ID: AC3F






Non-returnable
GH¢59.65
EASY PAYMENT
MATCH EVERY PRICE
CUSTOMER SUPPORT
Choose Quantity

Talk to our product specialist
Product Details
Specifications

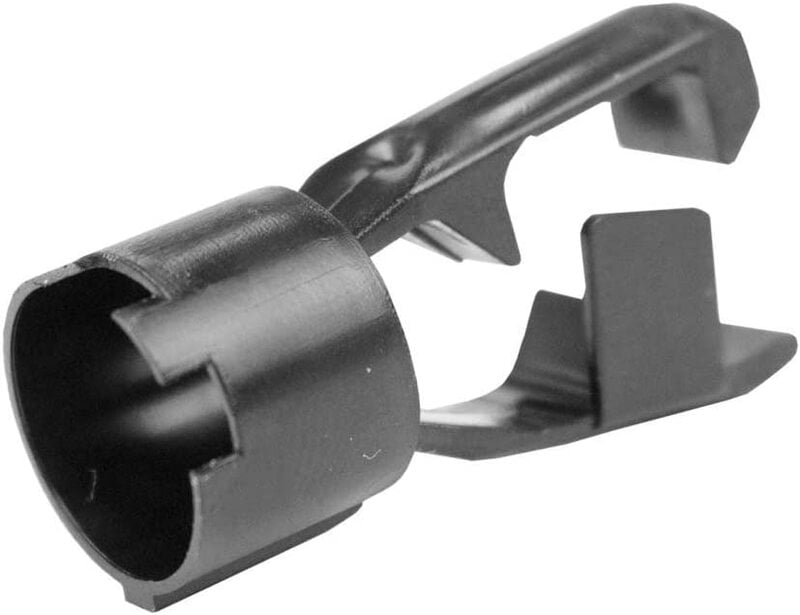

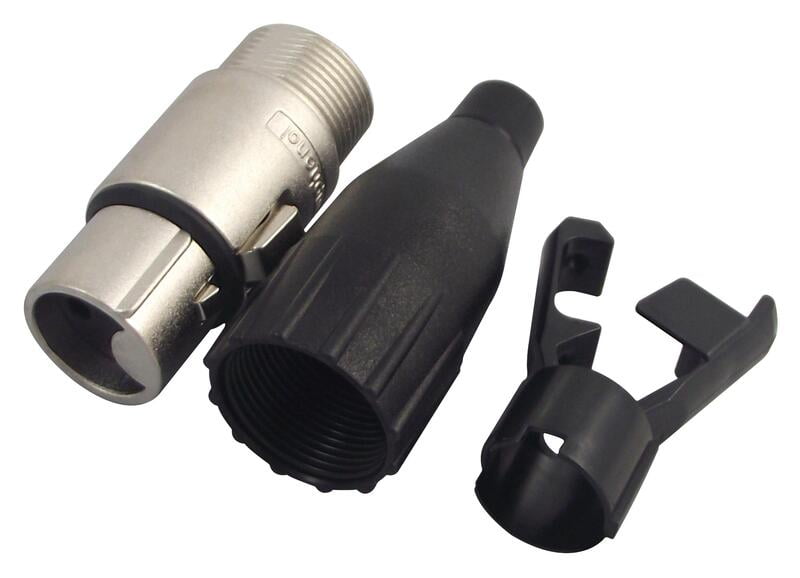

AC series XLR connectors feature the unique Australian design and patented “Jaws” cable retention system. A leading first mate last break socket contact is standard on all female connectors (Pin 1). The AC series connector can be quickly and easily assembled without screws – by hand or portable termination tool. It has 3 contact arrangements and Compatible with all other XLR brands.
Specification
- GenderFemale
- Part pategoryFemale cable connector
- Number of positions (w/o PE)3
- Lower temperature(GC) -25
- Rated current (40 °C)(A) 30
- Shell Size - InsertXLR
- Primary MaterialMetal
- ApplicationsAudio
- ColorSilver
- TerminationSolder Tabs
- FeaturesBackshell
- Mounting TypeFree Hanging (In-Line)
- Shell MaterialZinc Die Cast
- Contact Finish - MatingSilver
