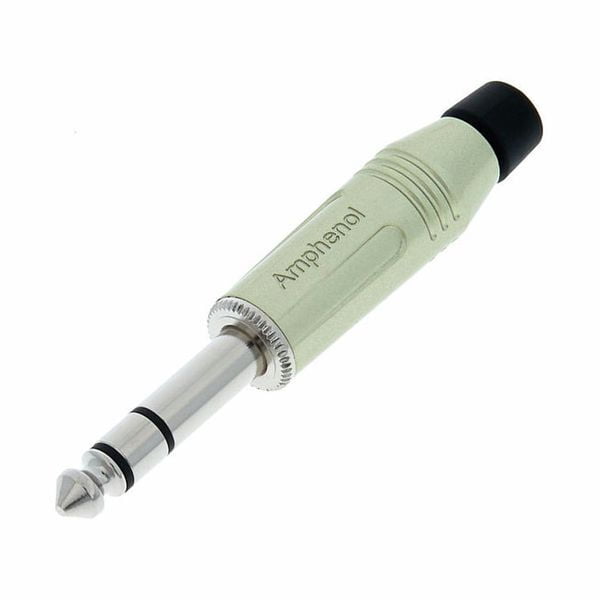

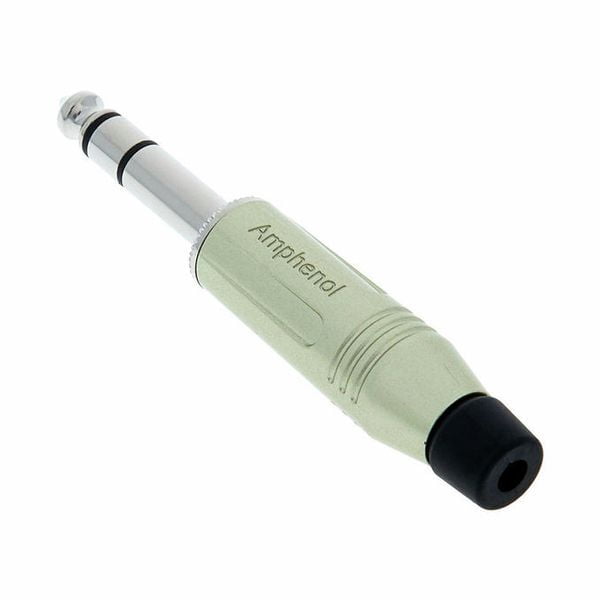

1/4" Phone Stereo Nickel Plug.
Product ID: ACPS-GN

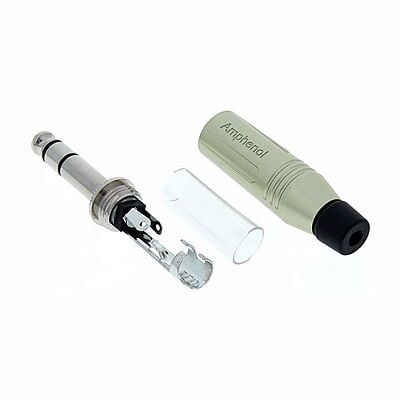

The ACPS-GN is a 1/4-inch Stereo Phone Plug with nickel-plated contacts. M-series (musician range) phone plug in stylish shell design, robust die-cast shell with satin finish, precision machined contacts and 6.5mm cable outer diameter entry. It is Standard type. it has Improved solderability. It has flexible grommet cable protection.
- Part pategoryMale cable connector
- Number of positions (w/o PE)3
- Lower temperature(GC) -25
- Rated current (40 °C)(A) 75
- Primary MaterialMetal
- TerminationSolder Tabs
- Mounting TypeFree Hanging (In-Line)
- Shell MaterialZinc Die Cast
- Contact Finish - MatingSilver
