CM 12a

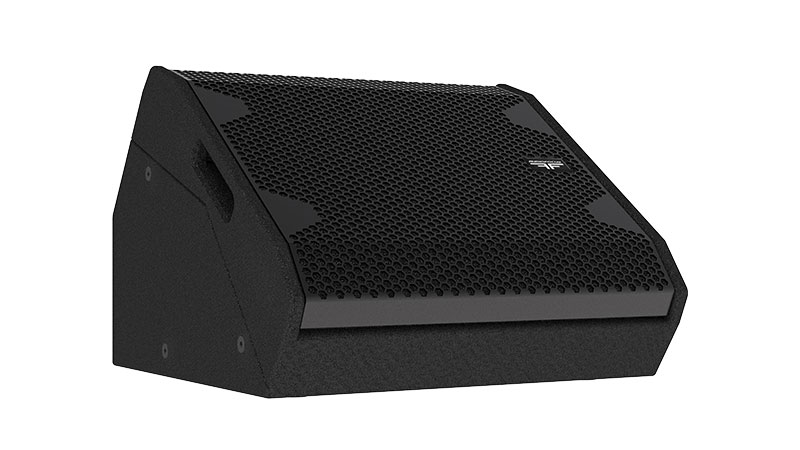

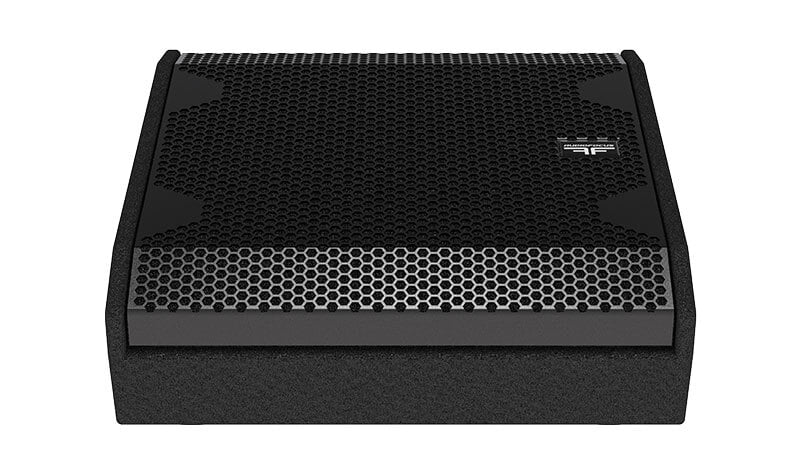

CM 12a is a uniquely compact, self-powered 2-way coaxial stage monitor, with the flexibility to serve as a full-range PA speaker, making it a popular choice for live events, touring, DJ sets, drum fills, and front fills.
Created to deliver outstanding SPL for its size, CM 12a’s low profile design won’t get in the way of the performance. Directivity coverage can be adjusted quickly and easily with no tools required.
The HF driver diaphragm assembly employs a high specification cotton composite dome together with a phasing plug, giving CM 12a its exceptional linearity, precision, and musicality.
An advanced AUDIOFOCUS SCiO Class D amplifier module with integral DSP offers 4 easy and smart presets for any type of configuration.
Housed in a rugged, road-ready enclosure with a rigid magnetic grill, CM 12a is built with pride in Belgium and coated in tough, weather-resistant polyurea to protect your investment.
Acoustical & Electrical Specifications
- TransducersLF: 1×12’’ / HF : 1×3’’
- Frequency Response60Hz – 20kHz
- SPL peak / 1m (measured)137 dB
Connections & Physical Specifications
- Nominal Coverage Angle (Horizontal × Vertical)70°x50°, Rotatable horn, no tools needed
- RiggingAdjustable pole mount and M8 threaded inserts
- Audio ConnectorsIN/LINK: 1×3-point XLR
- Power ConnectorsIN/LINK: 1×3-point powerCON
- Network Connectors2 x etherCON for control and optional Dante / AVB
- CabinetHigh grade birch plywood
- FinishHighly resistant polyurea coating
- Dimensions (H x W x D)336 x 460 x 460mm
- Weight19kg
