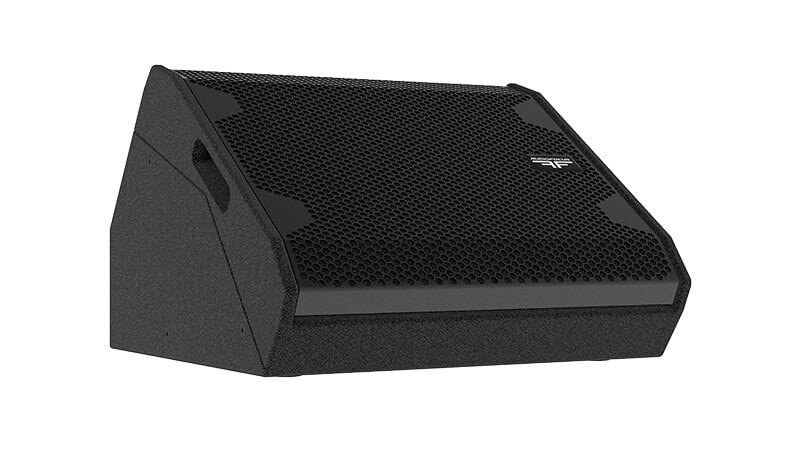

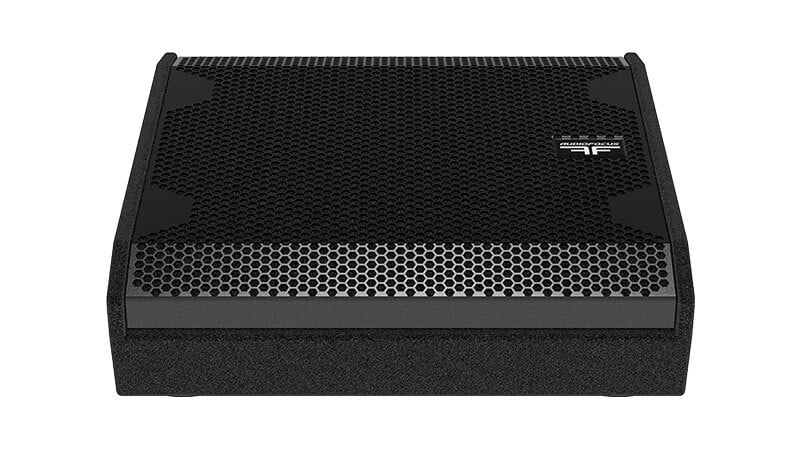

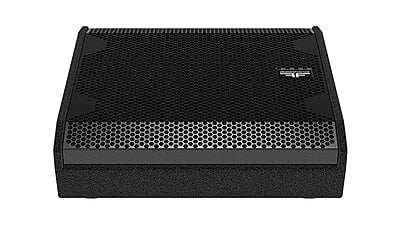

CM 15a
CM 15a is a compact, self-powered 2-way coaxial stage monitor, with the flexibility to serve as a full-range PA speaker, making it a popular choice for live events, touring, DJ sets, drum fills and front fills.
Created to deliver outstanding SPL for its size, CM 15a’s low-profile design won’t get in the way of the performance. Directivity coverage can be adjusted quickly and easily with no tools required.
The HF driver diaphragm assembly employs a high specification cotton composite dome together with a phasing plug, giving CM 15a its exceptional linearity, precision, and musicality.
An advanced AUDIOFOCUS Class D amplifier module with integral DSP offers 4 easy and smart presets for any type of configuration.
Housed in a rugged, road-ready enclosure with a rigid magnetic grill, CM 15a is built with pride in Belgium and coated in tough, weather-resistant polyurea to protect your investment.
Acoustical & Electrical Specifications
- TransducersLF: 1×15’’ / HF : 1×3″
- Frequency Response55Hz – 20kHz
- SPL peak / 1m (measured)139 dB
Connections & Physical Specifications
- Nominal Coverage Angle (Horizontal × Vertical)80°x60°, Rotatable horn, no tools needed
- RiggingAdjustable pole mount and M8 threaded inserts
- Audio ConnectorsIN/LINK: 1×3-point XLR
- Power ConnectorsIN/LINK: 1×3-point powerCON
- Network Connectors2 x etherCON for control and optional Dante / AVB
- CabinetHigh grade birch plywood
- FinishHighly resistant polyurea coating
- Dimensions (H x W x D)355 x 530 x 515 mm
- Weight21.5kg
