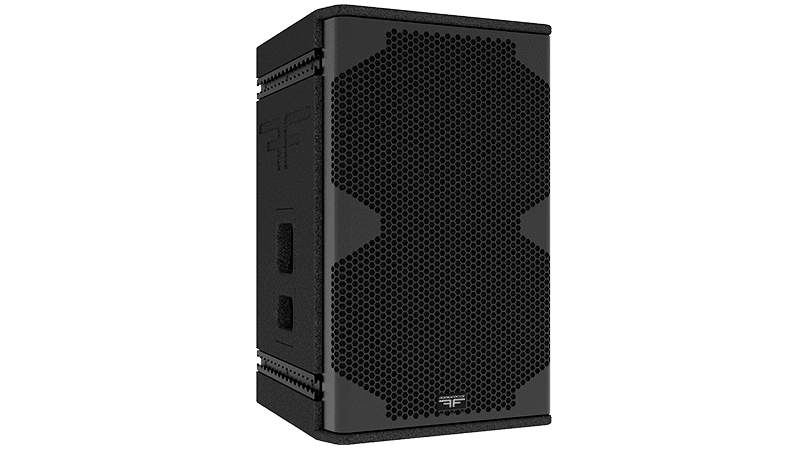

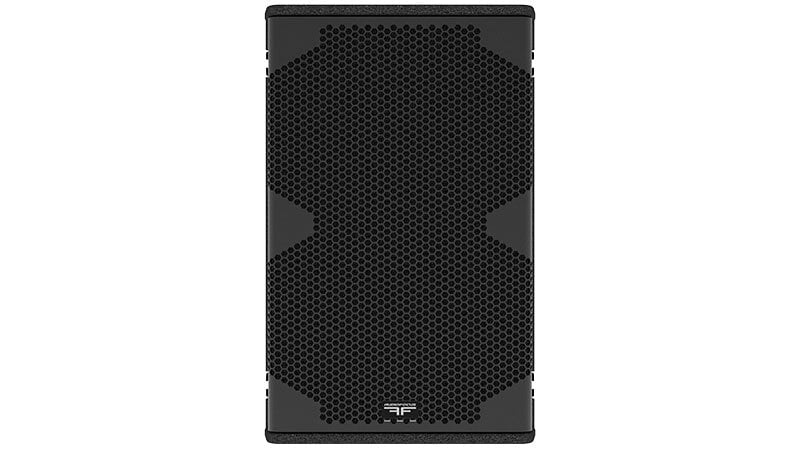

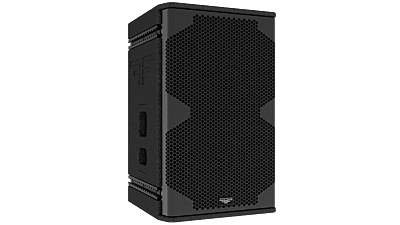

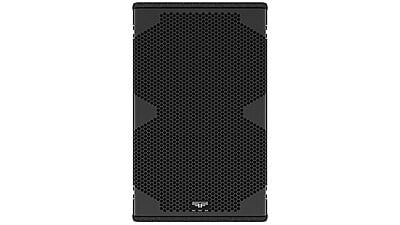

FRX 12a



FRX 12a is a compact, powerful self-powered 2-way constant curvature loudspeaker, optimized for medium throw, high SPL live applications. FRX12a is a uniquely versatile building block for systems ranging from single top pole mounts to left/right, central cluster or in the round setups. Typically used in horizontal ground stack configurations, FRX12a can also be flown horizontally or vertically and its adjustable 80×30° AF horn can be reconfigured quickly without the need for tools.
Our proprietary X-Comb DSP technology eliminates comb effects, ensuring perfect coupling between FRX 12a cabinets and creating a coherent wavefront at any location. The enclosure houses a 1.4’’ diaphragm compression driver loaded with a 12’’ neodymium low-frequency transducer and offers two distinct directivity plans.
An advanced AUDIOFOCUS SCiO Class D amplifier module with integral DSP allows FRX 12a to be quickly deployed in any configuration.
FRX 12a is built with pride in Belgium and coated in tough, weather-resistant polyurea to safeguard your investment. The cabinet front is protected by a rigid metal grill, backed by acoustically transparent foam.
Acoustical & Electrical Specifications
- TransducersLF: 1×12’’ / HF : 1×1.75’’
- Frequency Response55Hz – 20kHz
- SPL peak / 1m (measured)136 dB
Connections & Physical Specifications
- Nominal Coverage Angle (Horizontal × Vertical)80°x30°, Rotatable horn, no tools needed
- RiggingPole mounted and Aeroquip fly tracks with dedicated rigging
- Audio ConnectorsIN/LINK: 1×3-point XLR
- Power ConnectorsIN/LINK: 1×3-point powerCON
- Network Connectors2 x etherCON for control and optional Dante / AVB
- CabinetHigh grade birch plywood
- FinishHighly resistant polyurea coating
- Dimensions (H x W x D)604 x 382 x 437 mm
- Weight33kg
