HP-3-F
Non-returnable
GH¢150.86

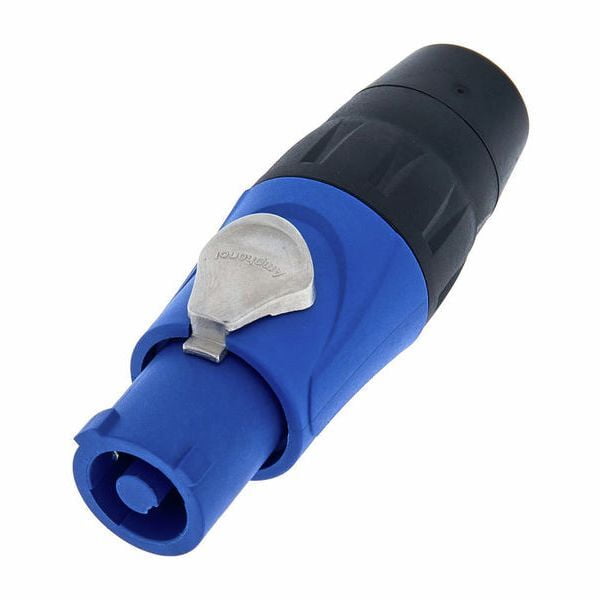

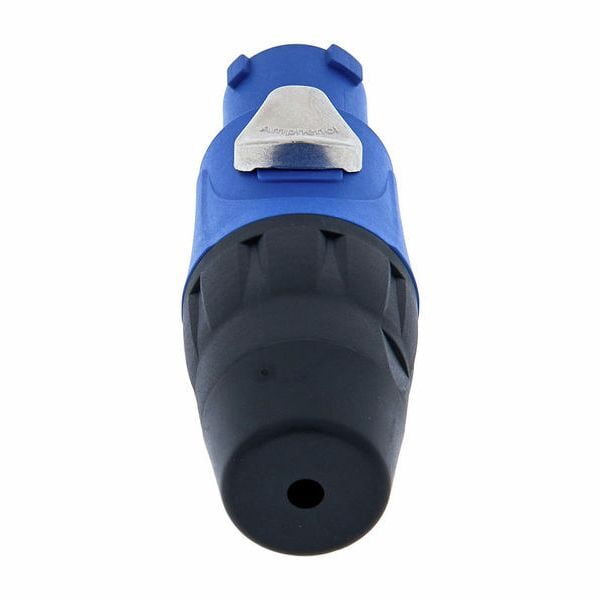

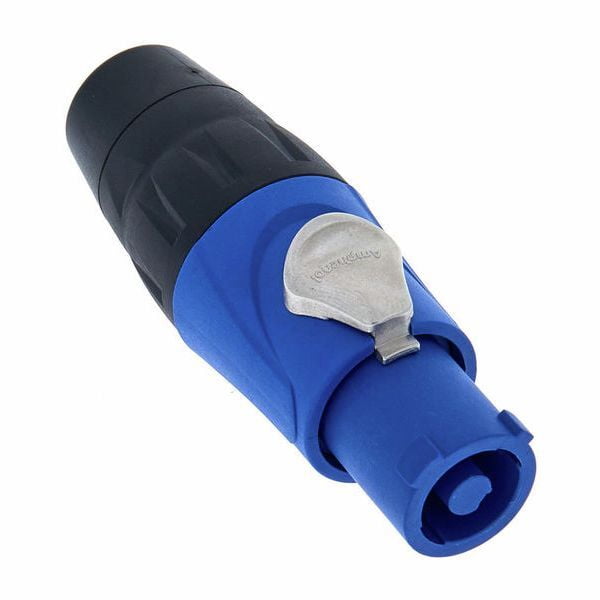

Plastic Plug Screw Blue 3 Pole Power Connector In.
![HP-3-F HP-3-F](/product-images/11918151_800.jpg/2835102000003770154/700x700)
![HP-3-F HP-3-F](/product-images/11918151_800.jpg/2835102000003770154/500x500)
![HP-3-F HP-3-F](/product-images/11918146_800.jpg/2835102000003770156/500x500)
![HP-3-F HP-3-F](/product-images/11918136_800.jpg/2835102000003770152/500x500)
![HP-3-F HP-3-F](/product-images/11918156_800.jpg/2835102000003770150/500x500)
Product Details
Specifications

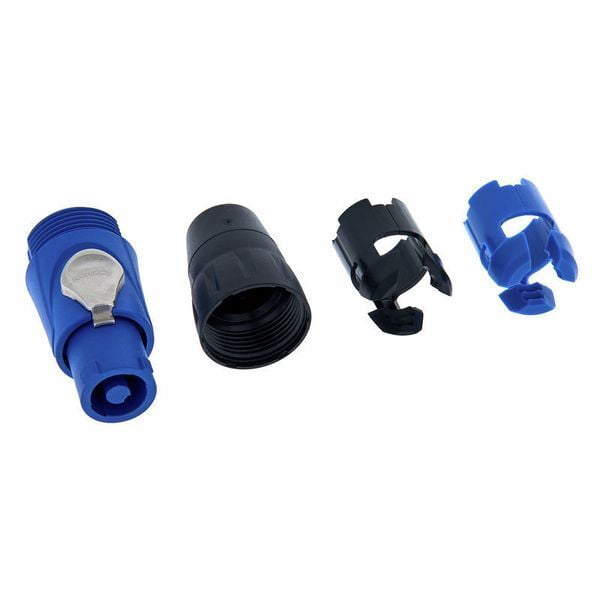

The Amphenol HP series offers 25 amp rating in a secure-locking, compact housing, and meets all the current safety standards. The series offers a 3-pole connection, with a pre-mating earth connection and compact design. Two secure chuck cable strain clamps are supplied, one for 5-7.5mm cable diameter; one for 7.5mm-15mm. Locking is by the twistlock principle with metal latch.
Specification
- GenderMale
- Part pategoryMale cable connector
- Number of positions (w/o PE)3
- Lower temperature(GC) -25
- Rated current (40 °C)(A) 30
- Primary MaterialPlastic
- Voltage Rating250VAC
- TerminationSolder Tabs
- FeaturesBackshell
- Mounting TypeFree Hanging (In-Line)
- Shell MaterialPolyamide (PA66), Nylon 6/6, Glass Filled
- Contact Finish - MatingSilver
