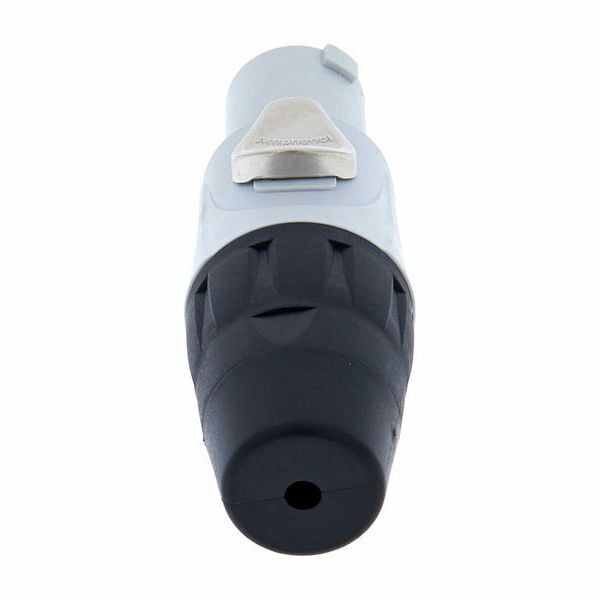

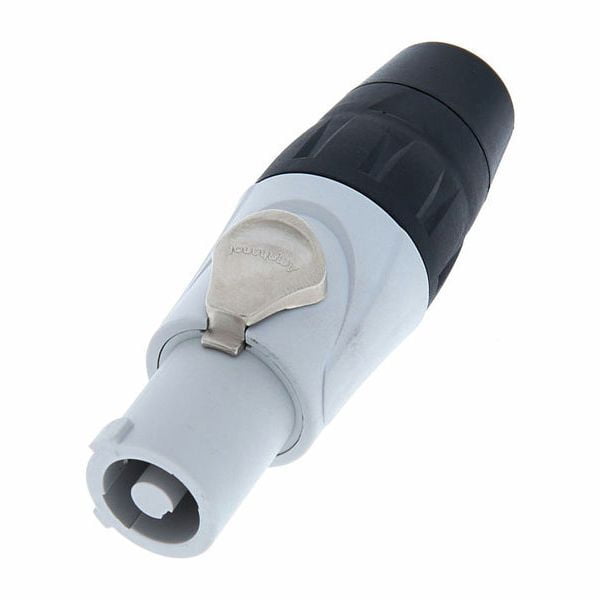

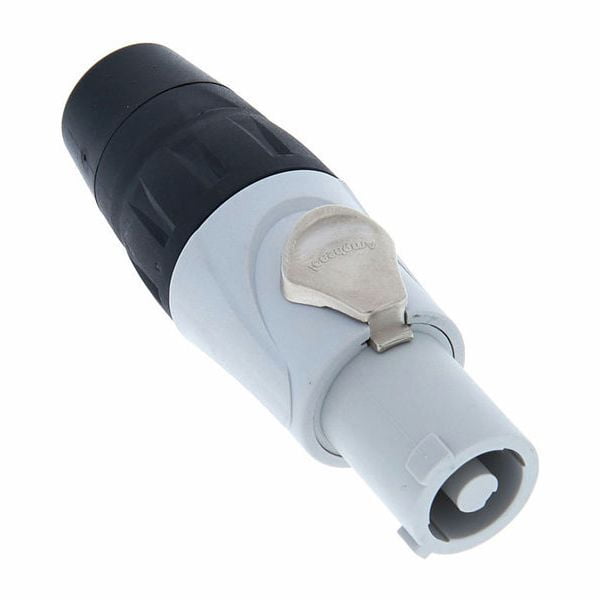

Plastic Plug Screw Grey 3 Pole Power Out Connector.
Product ID: HP-3-FG

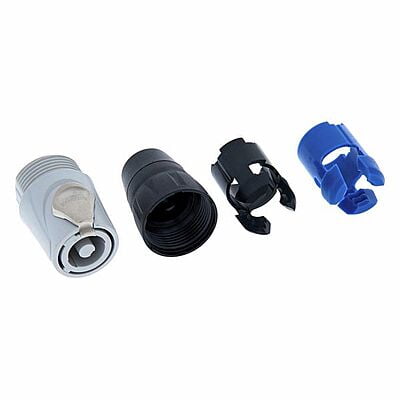

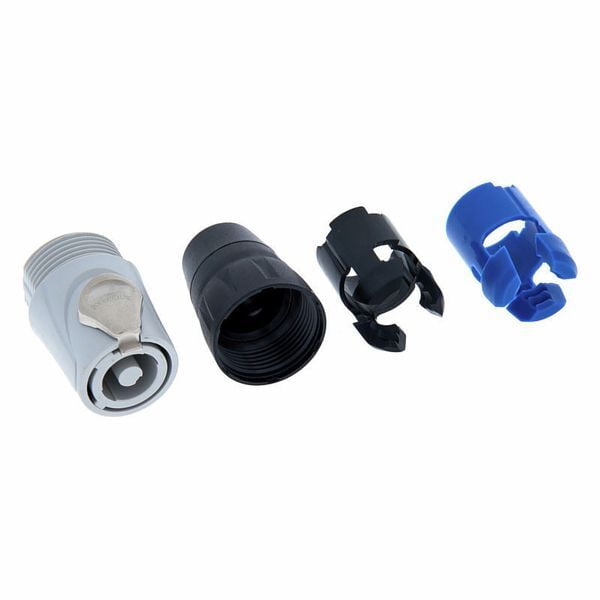

The Amphenol HP series offers 25 amp rating in a secure-locking, compact housing, and meets all the current safety standards. The series offers a 3-pole connection, with a pre-mating earth connection and compact design. Two secure chuck cable strain clamps are supplied, one for 5-7.5mm cable diameter; one for 7.5mm-15mm. Locking is by the twistlock principle with metal latch.
- Part pategoryMale cable connector
- Number of positions (w/o PE)3
- Lower temperature(GC) -25
- Rated current (40 °C)(A) 75
- Primary MaterialPlastic
- Voltage Rating250VAC
- Mounting TypeFree Hanging (In-Line)
- Shell MaterialPolyamide (PA66), Nylon 6/6, Glass Filled
- Contact Finish - MatingSilver
