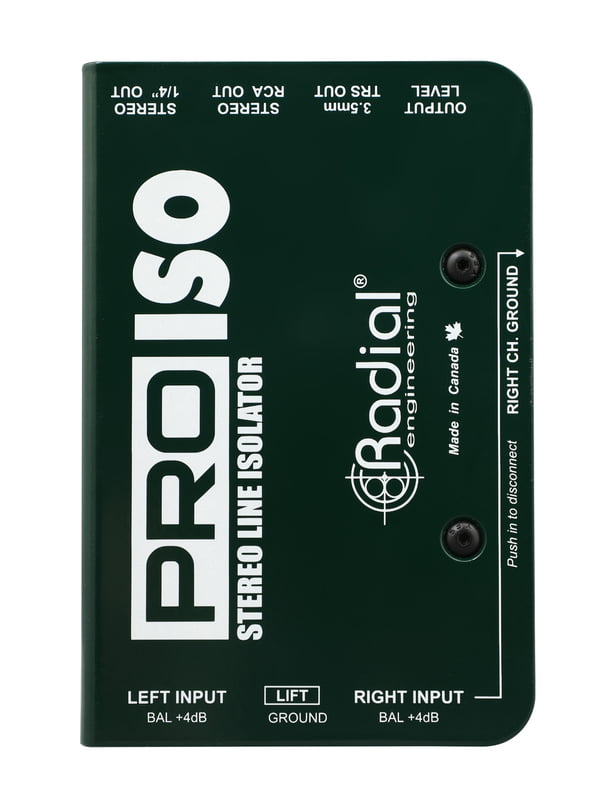

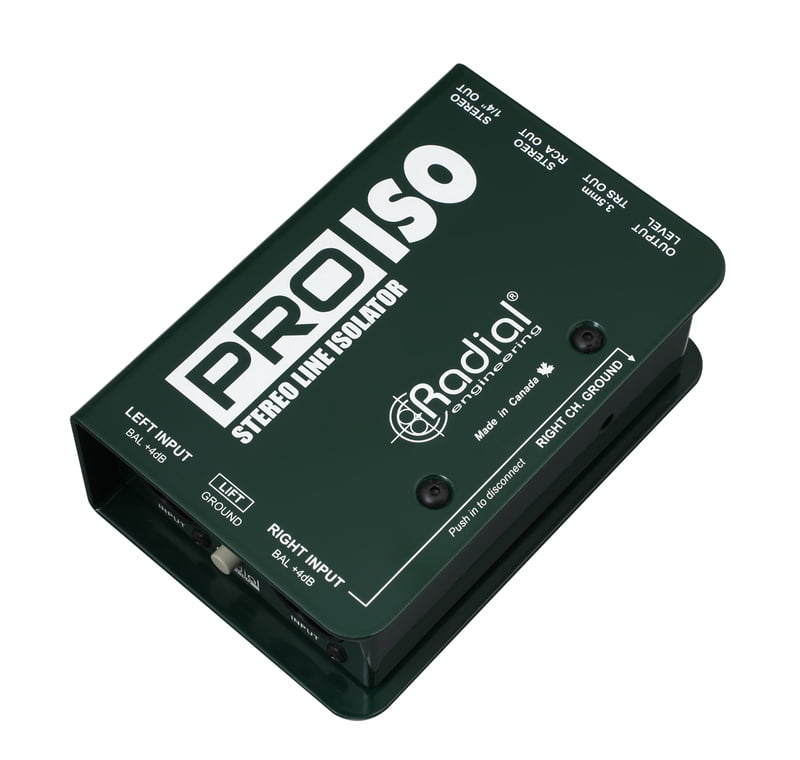

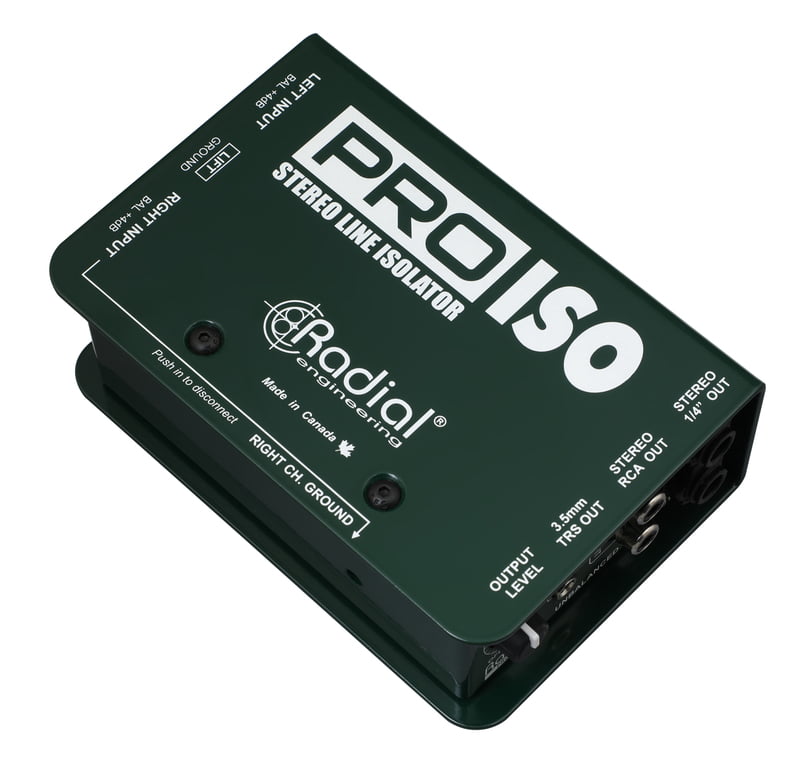

Pro-Iso
GH¢4,211.96

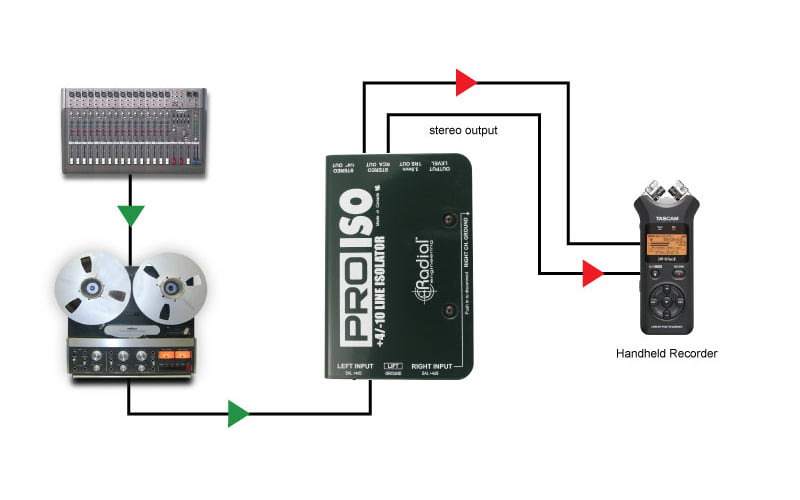

+4dB to -10dB converter that employs a cost effective transformer that focuses the energy in the voice range. This makes the Pro-Iso a great choice for sermons, news gathering and spoken voice.
![Pro-Iso Pro-Iso](/product-images/pro-iso-product_34_right.jpg/2835102000003595401/700x700)
![Pro-Iso Pro-Iso](/product-images/pro-iso-product_34_right.jpg/2835102000003595401/500x500)
![Pro-Iso Pro-Iso](/product-images/pro-iso-product_top.jpg/2835102000003595415/500x500)
![Pro-Iso Pro-Iso](/product-images/pro-iso-product_34_left.jpg/2835102000003595399/500x500)
![Pro-Iso Pro-Iso](/product-images/pro-iso-product_back.jpg/2835102000003595409/500x500)
![Pro-Iso Pro-Iso](/product-images/pro-iso-product_front.jpg/2835102000003595411/500x500)
![Pro-Iso Pro-Iso](/product-images/pro-iso-product_applications-1.jpg/2835102000003595403/500x500)
![Pro-Iso Pro-Iso](/product-images/pro-iso-product_applications-2.jpg/2835102000003595405/500x500)
![Pro-Iso Pro-Iso](/product-images/pro-iso-product_applications-3.jpg/2835102000003595407/500x500)
Product Details
Specifications

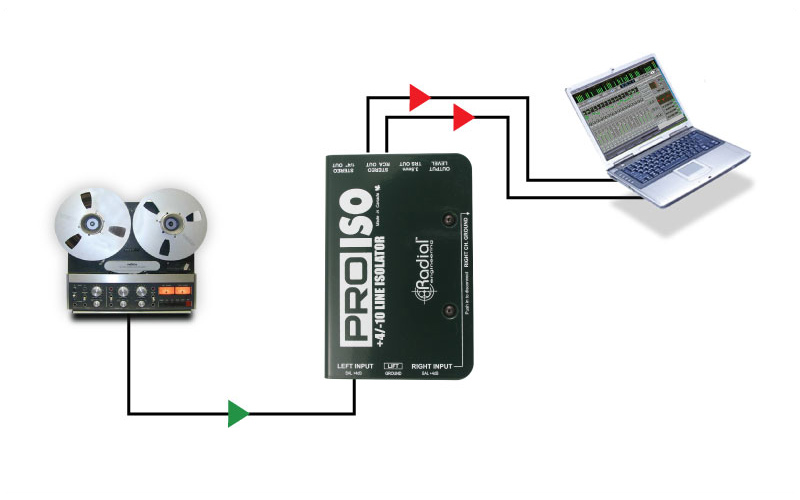

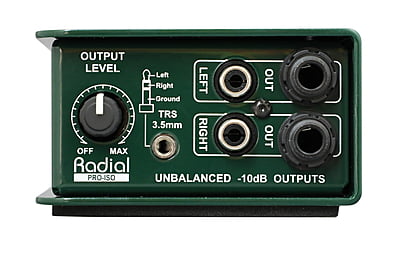

The passive design begins with 100% discrete components throughout. A set & forget level control lets you attenuate the input signal to prevent it from overloading the destination device. Output connections include a stereo pair of ¼" connectors, a set of RCAs and a mini 3.5mm (1/8") for interfacing to a mini recorder or lap-top computer. Transformer isolation helps eliminate hum and buzz caused by ground loops while eliminating stray DC currents from flowing.
Electrical Specifications
- Frequency Response20Hz ~ 18KHz (+0dB/ -3dB)
- Dynamic Range130dB
- Total Harmonic Distortion0.005% @ 1kHz
- Phase Deviation1.5° @ 100Hz; 3° @ 20Hz
- Input Impedance1.3k Ohms
- Output Impedance1.9k Ohms
- Maximum Input+20dBu @ 1kHz/1% THD+N
- PowerPassive, no power required
Physical Specifications

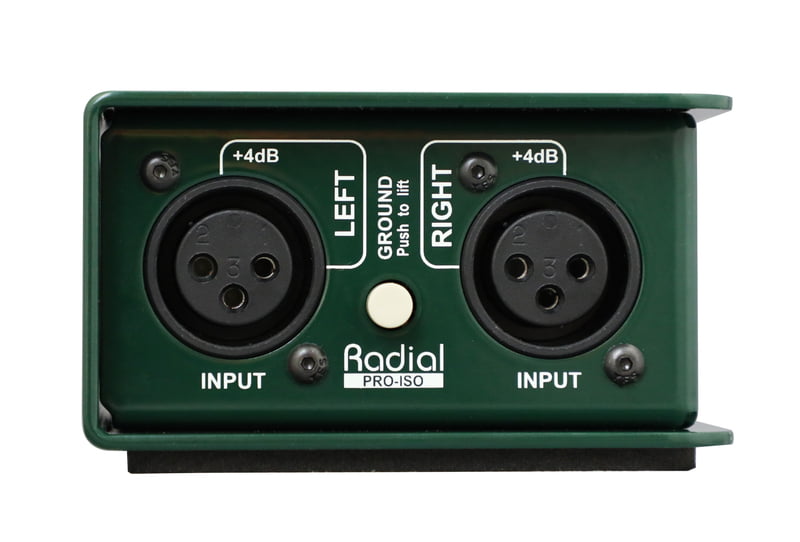

- Input ConnectorsBalanced XLR

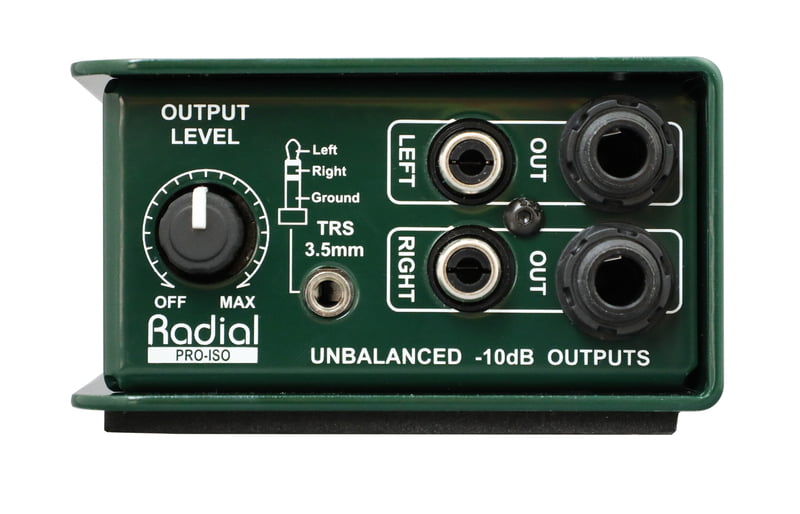

- Output Connectors1/4", RCA and 3.5mm TRS unbalanced output
- Number of ChannelsDual channel (stereo)
- Construction14 gauge steel chassis
- Dimensions (L x W x D)84mm x 127mm x 48mm
- Weight0.70kg
