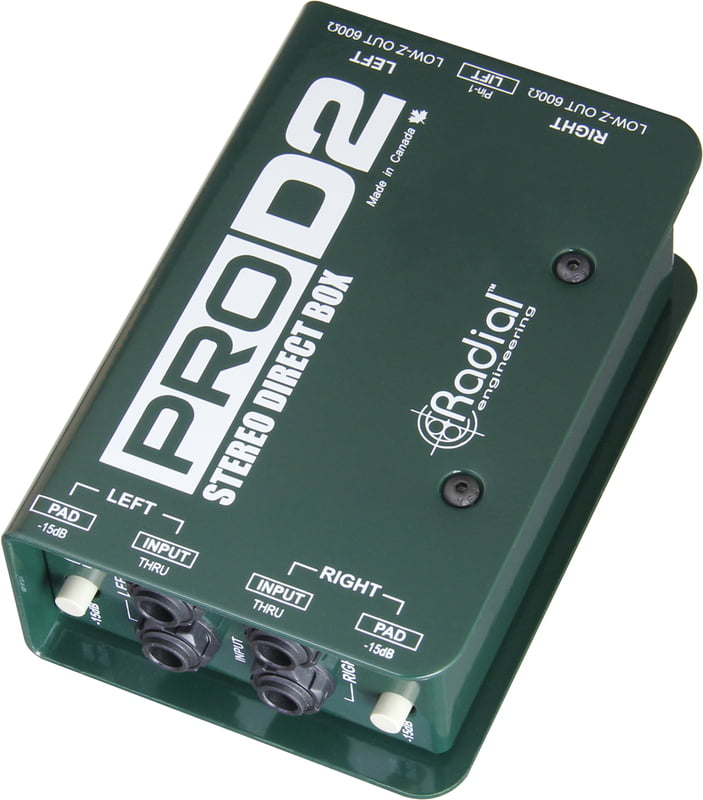

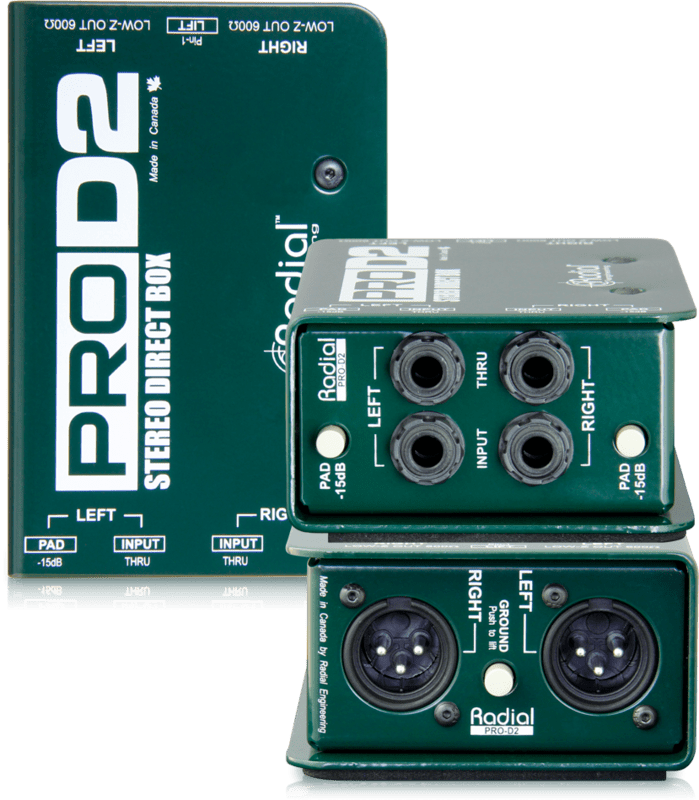

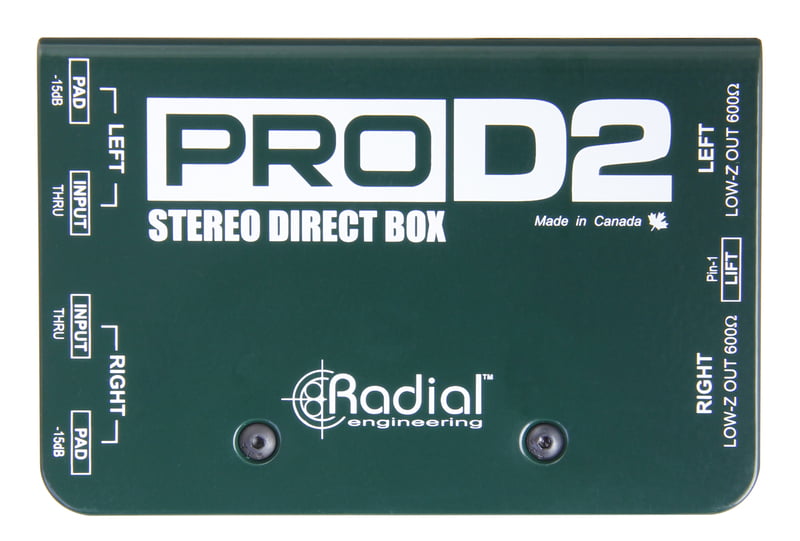

Radial Engineering ProD2
Stereo Passive Direct Box
Stereo Passive Direct Box
Product ID: ProD2
GH¢4,211.96
EASY PAYMENT
MATCH EVERY PRICE
CUSTOMER SUPPORT
Choose Quantity
Talk to our product specialist
Product Details
Specifications
At the heart of the design are two high performance Eclipse ET-DB2 transformers. These deliver 20Hz to 20kHz performance with less than 1.5dB deviation above 18kHz and are able to withstand tremendous signal levels without distortion.
Unlike active circuits that overload when the signal exceeds the rail voltage, transformers saturate. This creates a pleasing effect that naturally rounds out the tone, acting like a subtle limiter which is particularly advantageous when interfacing the ProD2 with digital pianos, samplers and drum machines that can produce excessive dynamics. Transformers are particularly adept at eliminating hum and buzz caused by ground loops.
Electrical Specifications
- Frequency Response20Hz ~ 18.5KHz (± 0.2dB)
- Dynamic Range128dB
- Total Harmonic Distortion0.01% from 20Hz~20kHz @-10dB
- Phase Deviation1° @ 100Hz; 8° @ 20Hz
- Input Impedance140k Ohms, unbalanced
- Output Impedance150 Ohms, balanced
- Maximum Input+18dB @ 20Hz
- PowerPassive, no power required
Physical Specifications

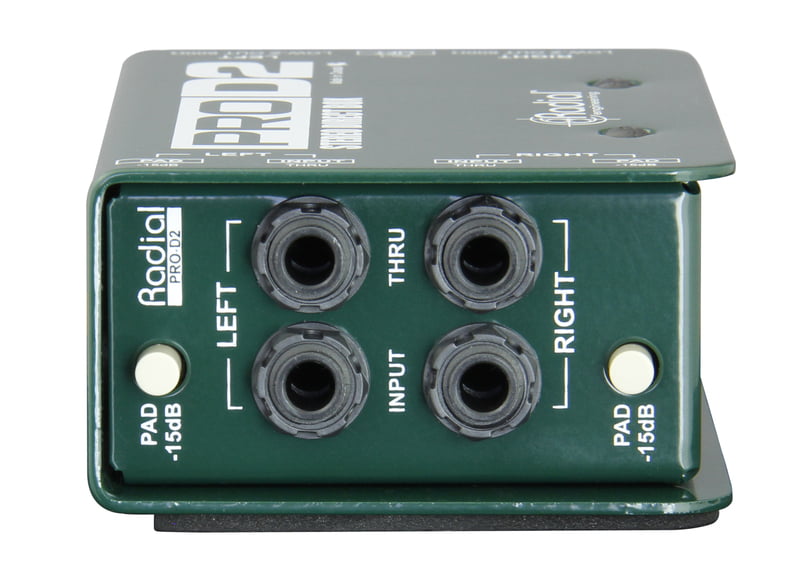

- Input Connectors1/4"

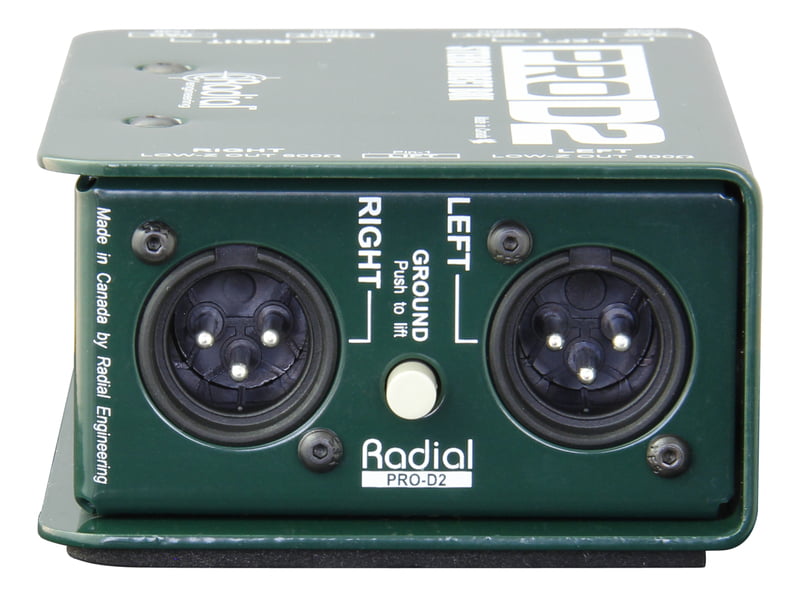

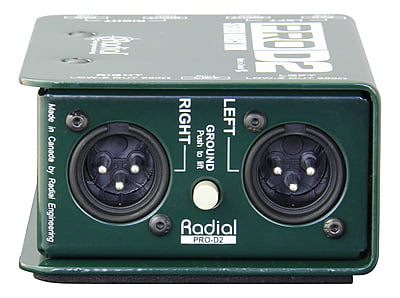

- Output ConnectorsBalanced XLR-M
- Number of ChannelsDual channel (stereo)
- Construction14 gauge steel chassis & outer shell
- Dimensions (L x W x D)127mm x 84.1mm x 45.5mm
- Weight0.54kg
