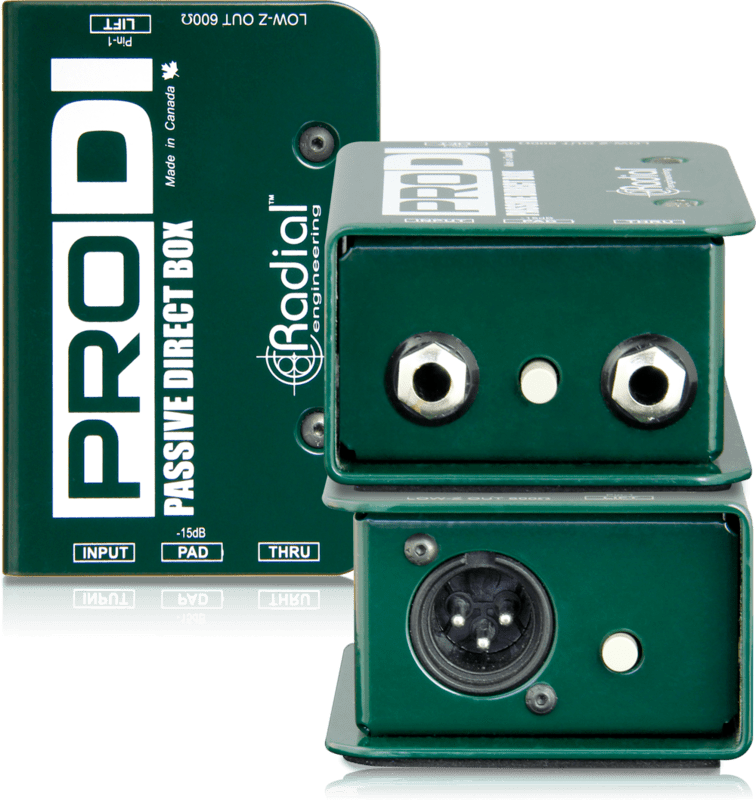

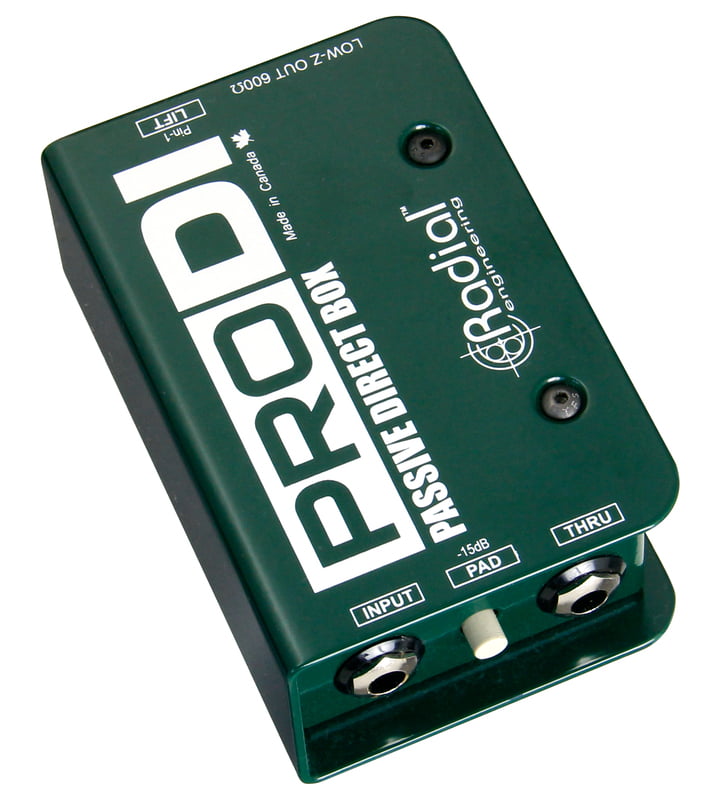

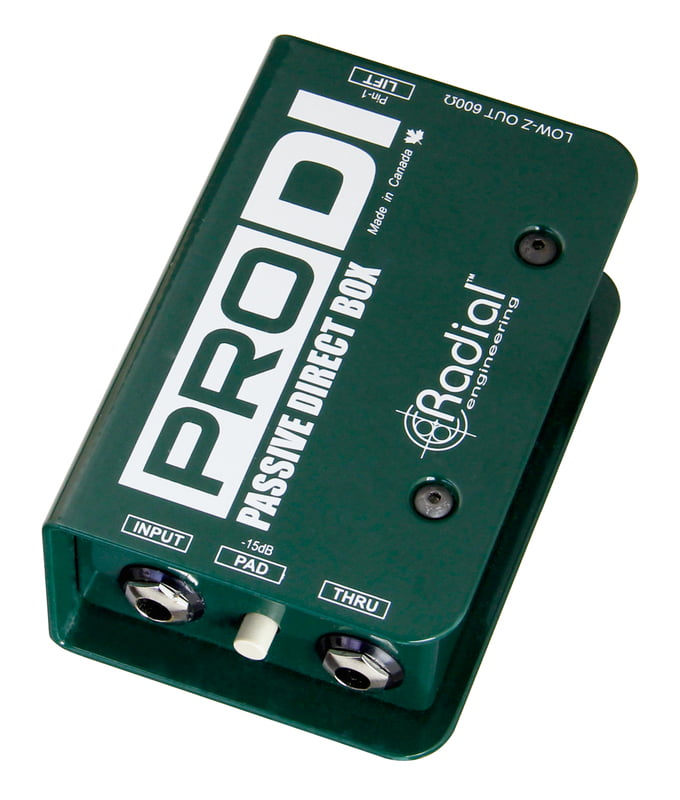

ProDI
GH¢2,690.96

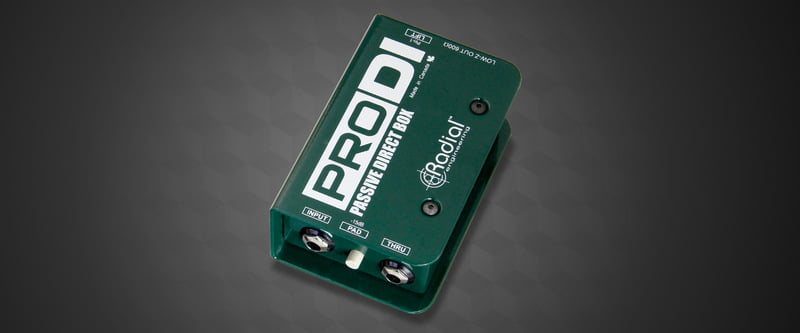

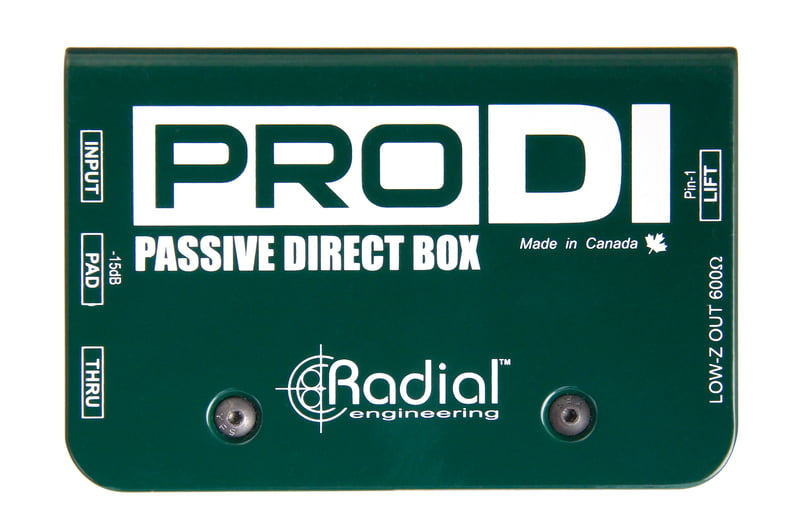

Compact passive direct box for stage and studio
Product Details
Specifications

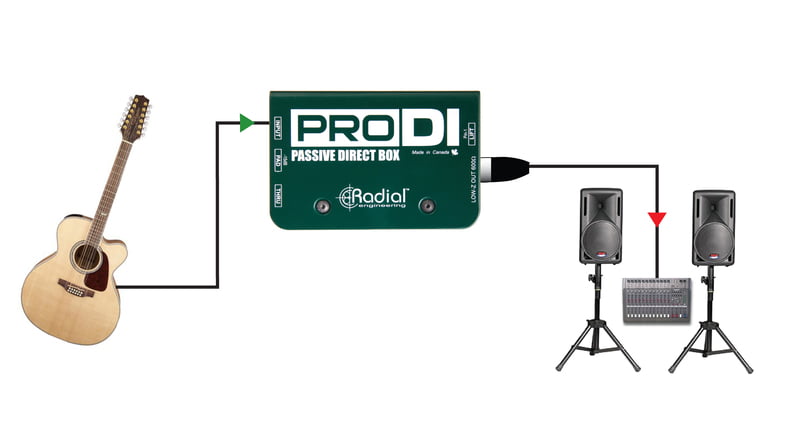

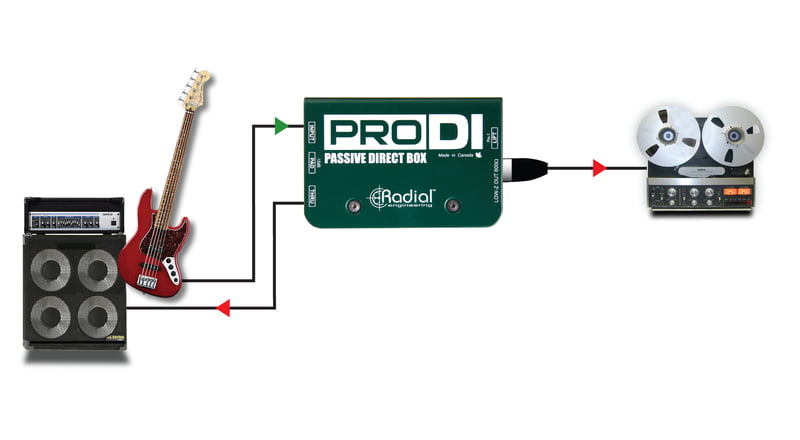

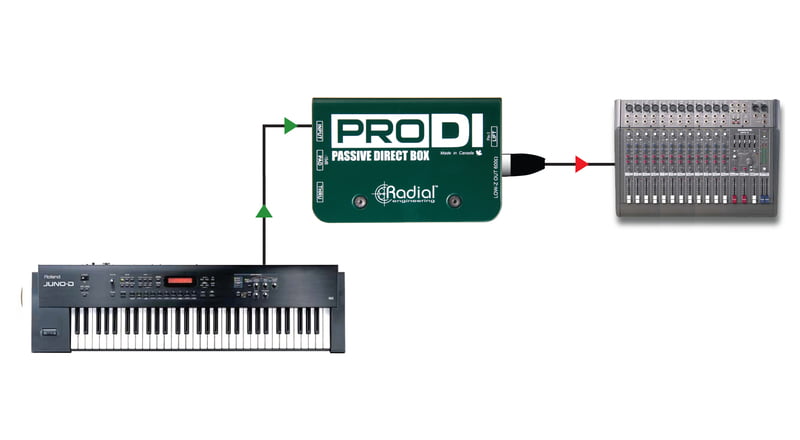

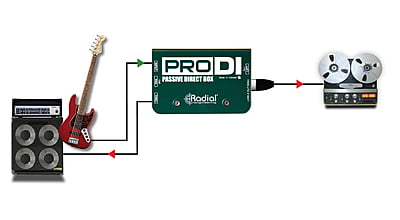

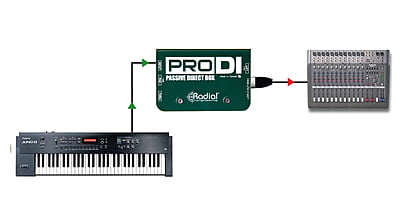

The ProDI is a passive direct box designed for use on stage or in home recording studios, with the ability to handle high output instruments without distortion, and a transformer-isolated output to eliminate noise from ground loops.
Electrical Specifications
- Frequency Response20Hz ~ 18.5KHz (± 0.2dB)
- Dynamic Range128dB
- Total Harmonic Distortion0.01% from 20Hz~20kHz @-10dB
- Phase Deviation1° @ 100Hz; 8° @ 20Hz
- Input Impedance140k Ohms, unbalanced
- Output Impedance150 Ohms, balanced
- Maximum Input+18dB @ 20Hz
- PowerPassive, no power required
Physical Specifications

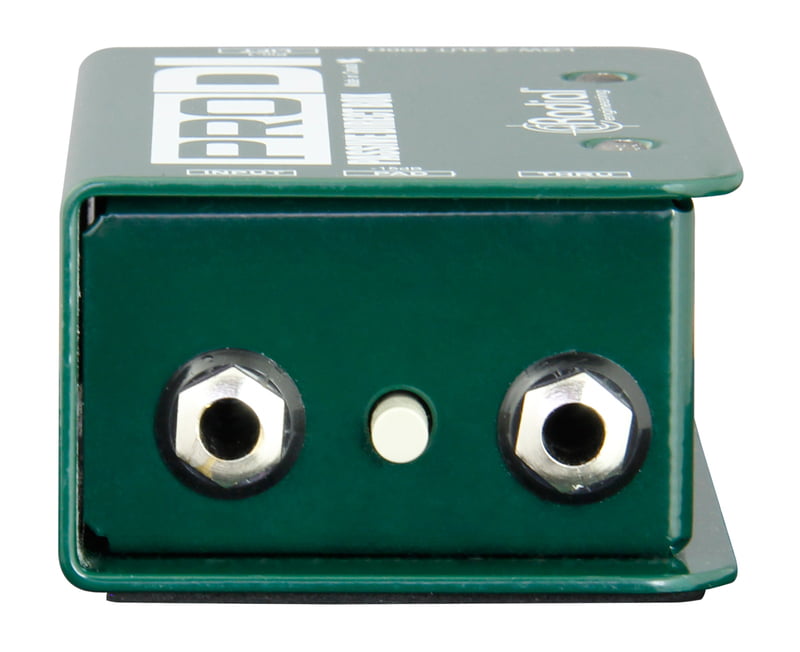

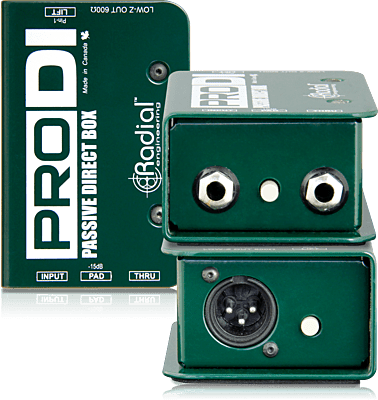

- Input ConnectorsXLR, 1/4" thru

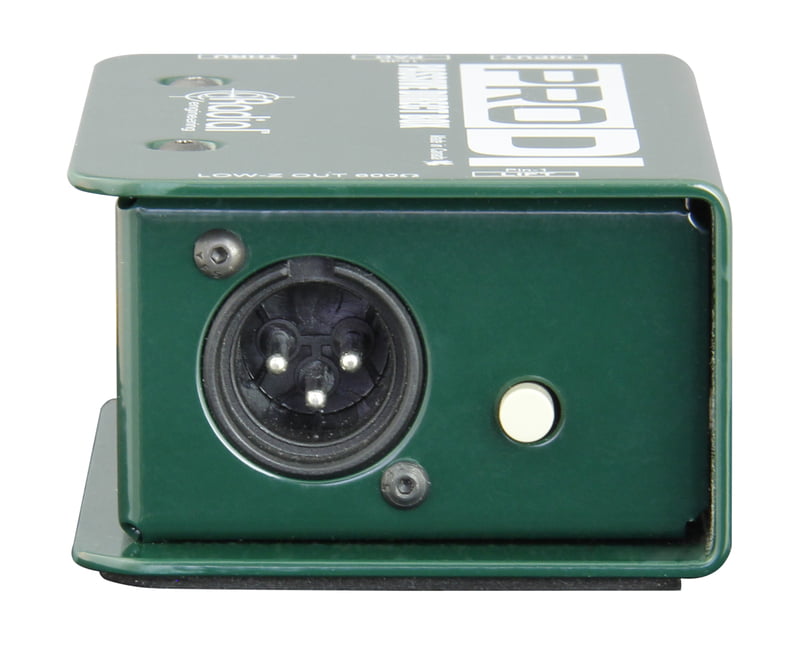

- Output ConnectorsBalanced XLR-M
- Number of ChannelsSingle channel (mono)
- Construction14 gauge steel chassis & outer shell
- Dimensions (L x W x D)108 x 70 x 44mm
- Weight0.54kg
