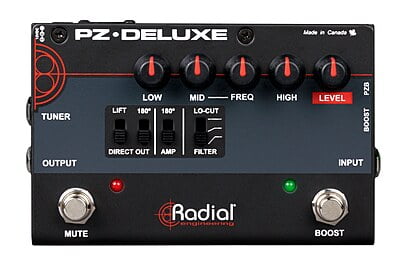

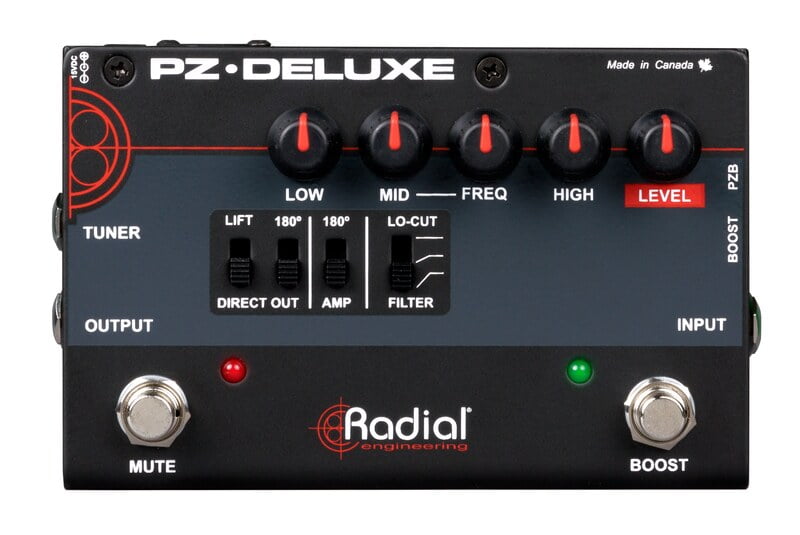

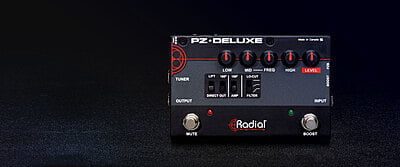

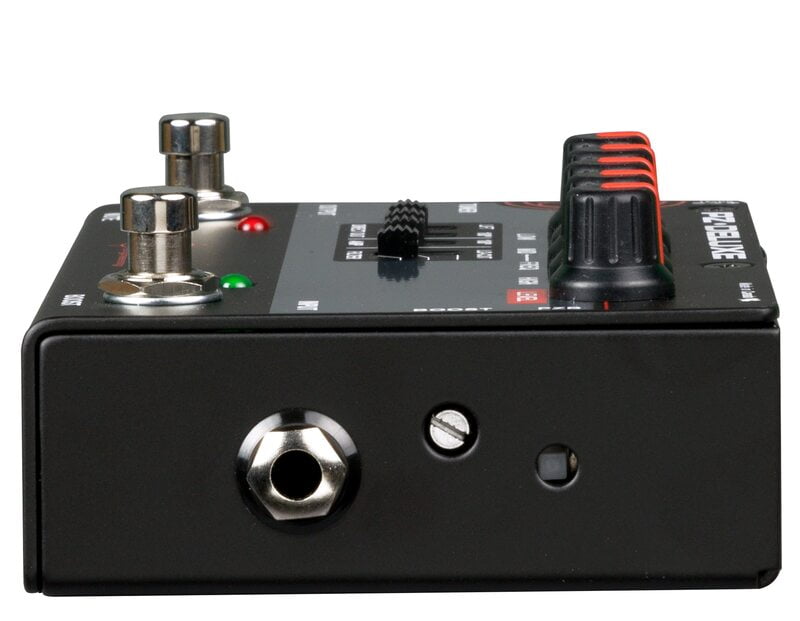

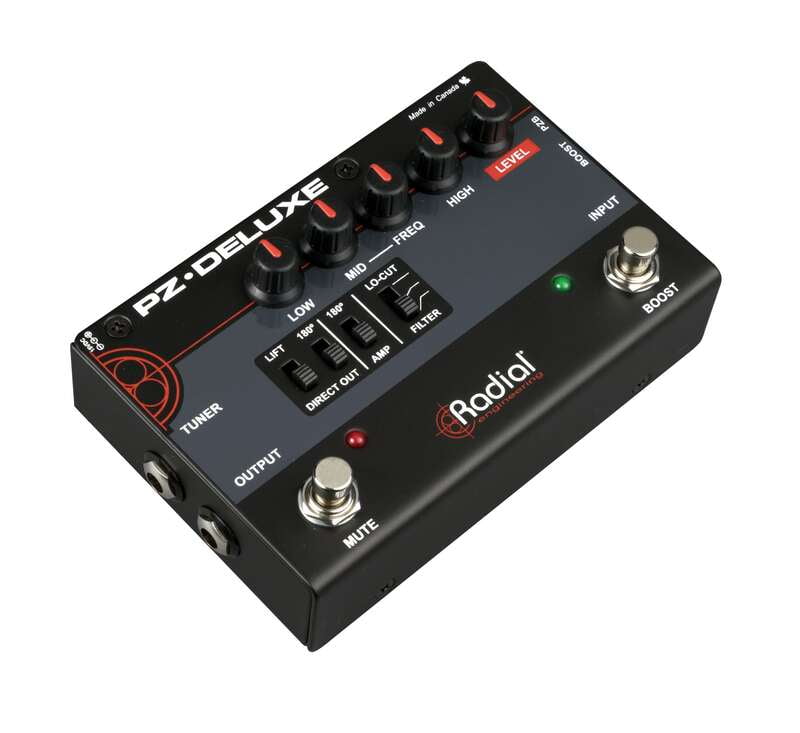

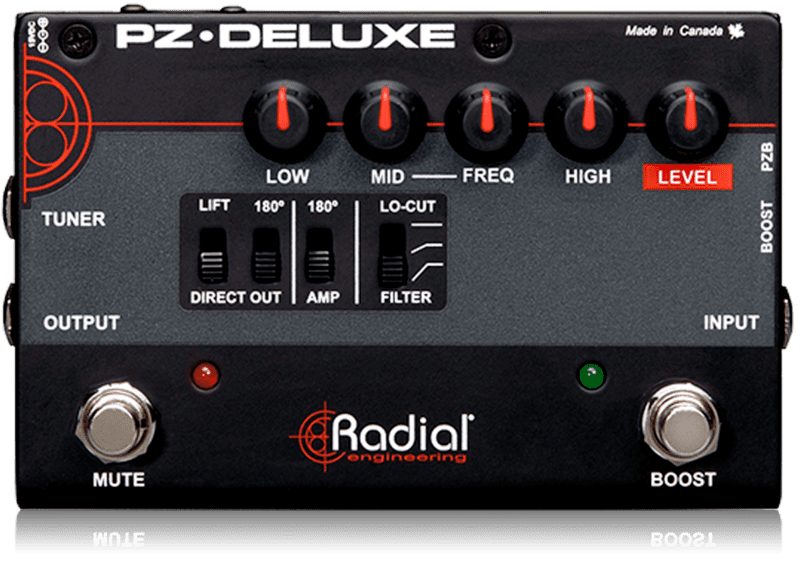

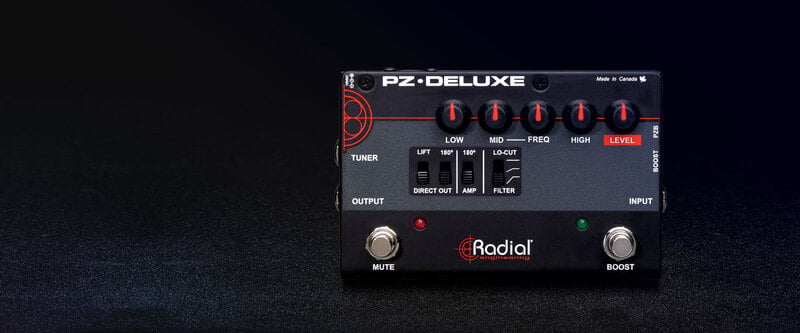

Radial Engineering PZ-Deluxe

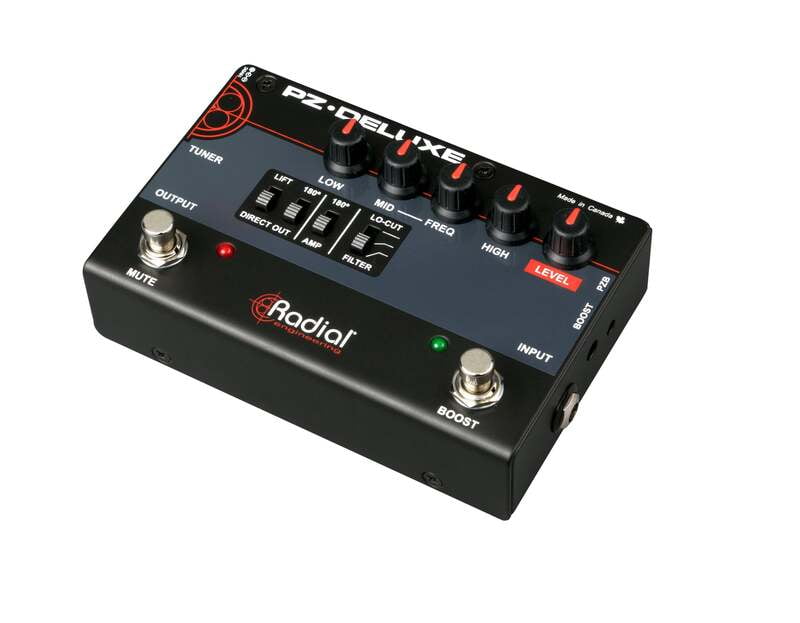

The PZ-Deluxe is a studio quality instrument preamp in a compact pedal for live stage use, with tone-shaping EQ controls and built-in boost & mute footswitches.
Product ID: PZ-Deluxe
Non-returnable
GH¢6,668.96
EASY PAYMENT
MATCH EVERY PRICE
CUSTOMER SUPPORT
Choose Quantity
Talk to our product specialist
Product Details
Specifications

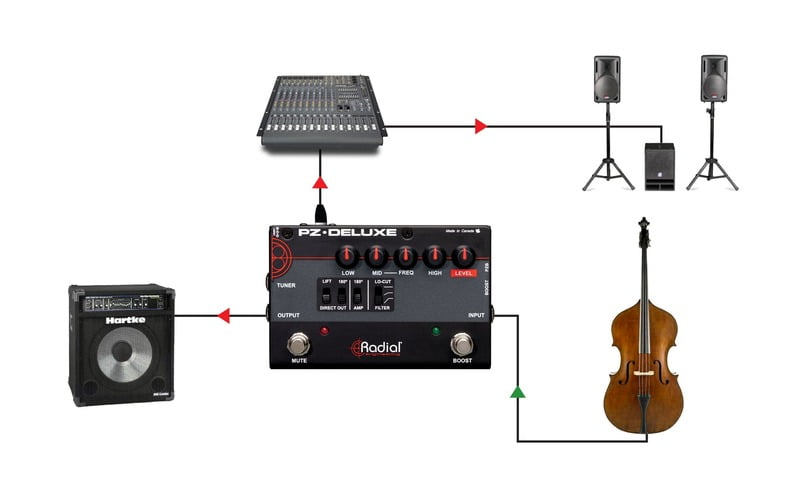

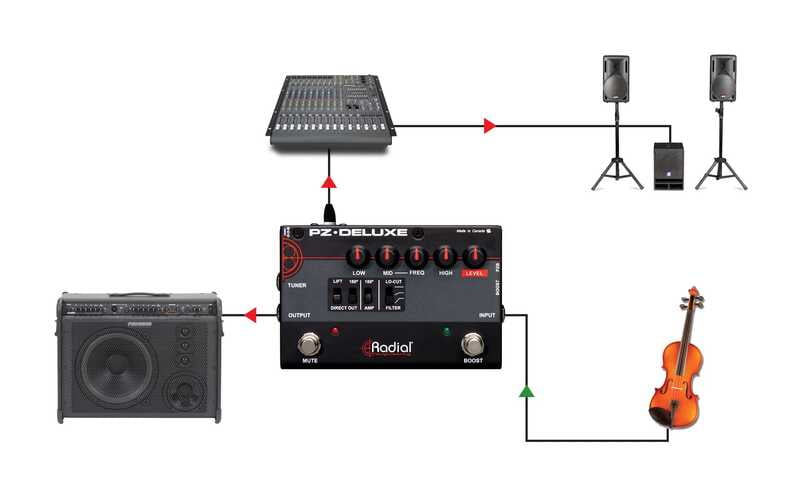

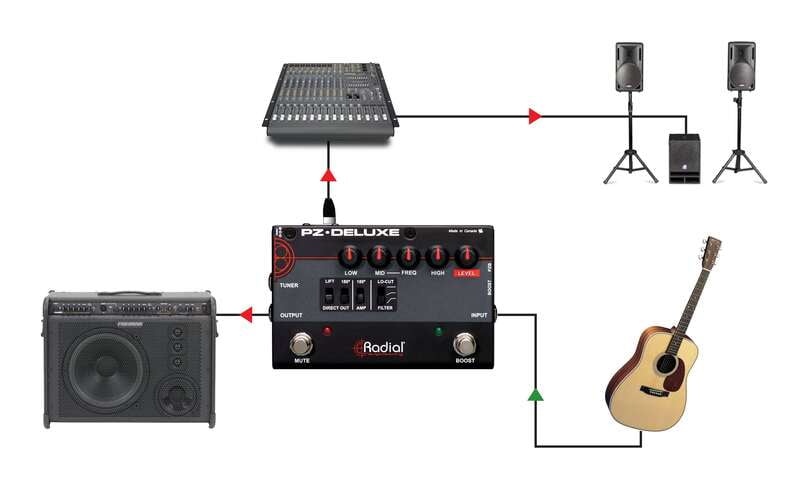

The PZ-Deluxe is an instrument preamp with a low noise front end that is capable of exceptional dynamics to adapt to all instruments including acoustic guitar, upright bass, mandolin and violin no matter what type of pickup system is being used. Powerful EQ controls allow you to shape your tone through the PA and a stage amp, with a low cut filter and 180° polarity reverse switches to help eliminate feedback on stage. A special PZB gain stage can be activated for use with instruments that have piezo transducers, increasing the input impedance to 10 meg ohms to eliminate the squawk and harshness that are sometimes associated with those pickup systems. The PZ-Deluxe also features a high quality Radial DI to provide a balanced output that can drive cables of over 100 meters (300ft) without noise into the PA system, and built-in mute and boost footswitches give you instant control for solos, instrument changeovers, or silent tune-ups on stage.
Electrical Specifications
- Frequency Response20Hz ~ 18kHz (0/-3dB)
- Dynamic Range105dB
- Total Harmonic Distortion0.03% @ -20dB output
- Input Impedance10M-Ohms
- Output ImpedanceXLR: 600Ω
Physical Specifications

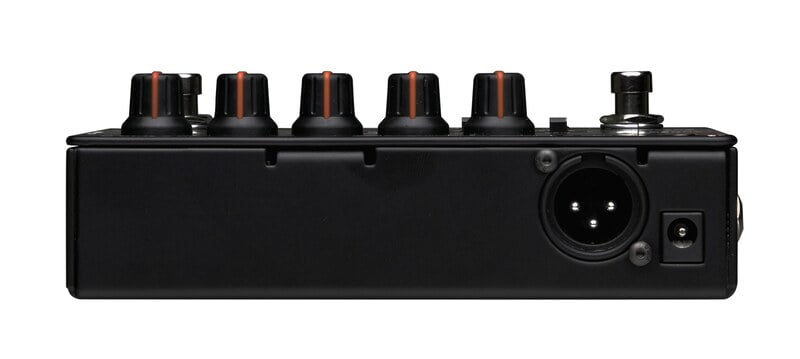

- Input ConnectorsXLR input
- ConstructionFor use in dry locations only between 5°C and 40°C
- Dimensions (L x W x D)(6.1" x 3.8" x 2.1") (155 x 96.5 x 53mm)
- Weight1.75lbs (0.8kg)
