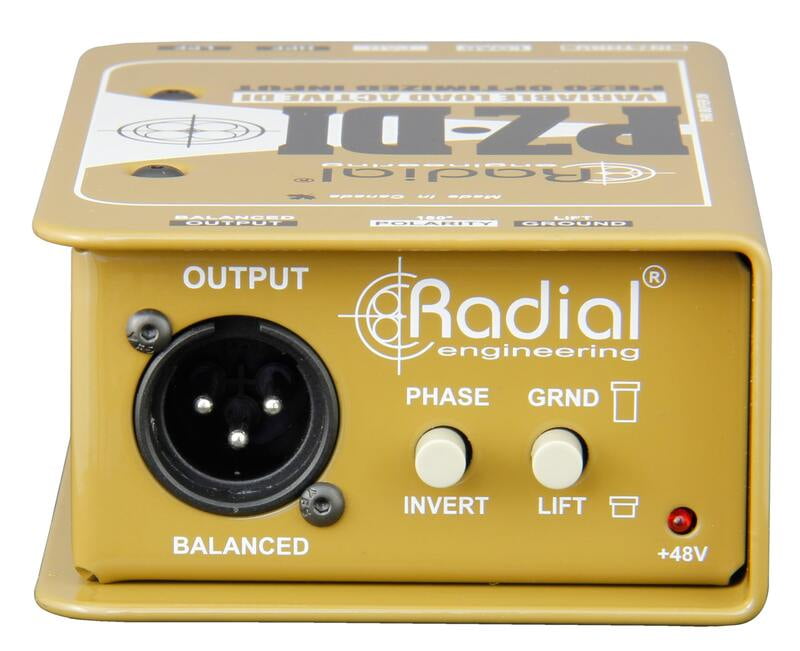

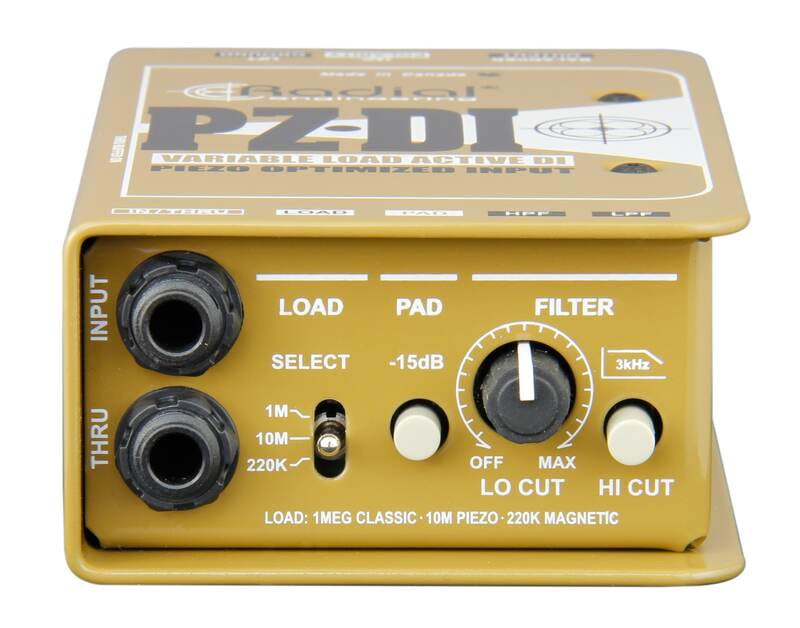

PZ-DI

Non-returnable
GH¢6,083.96

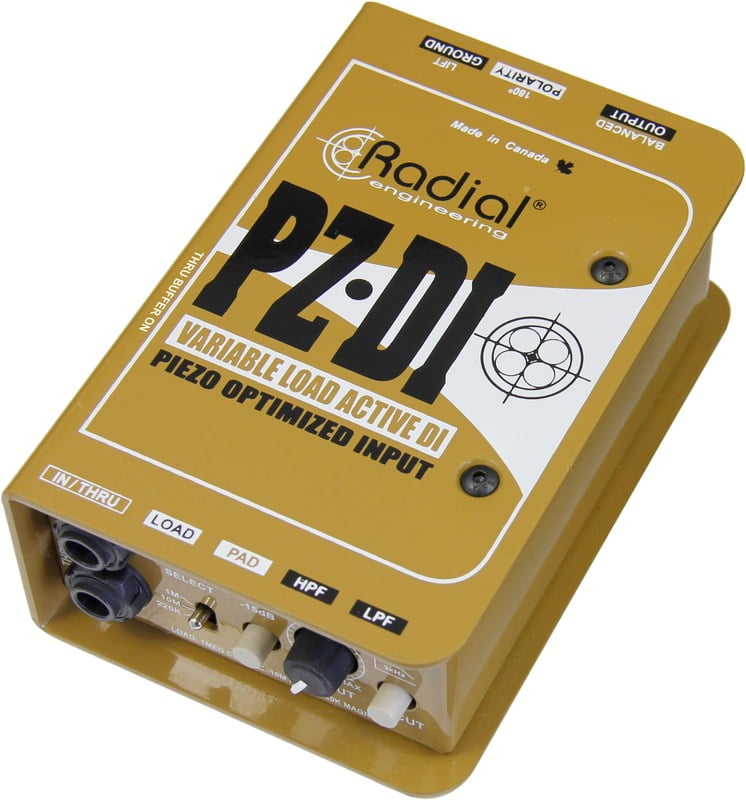

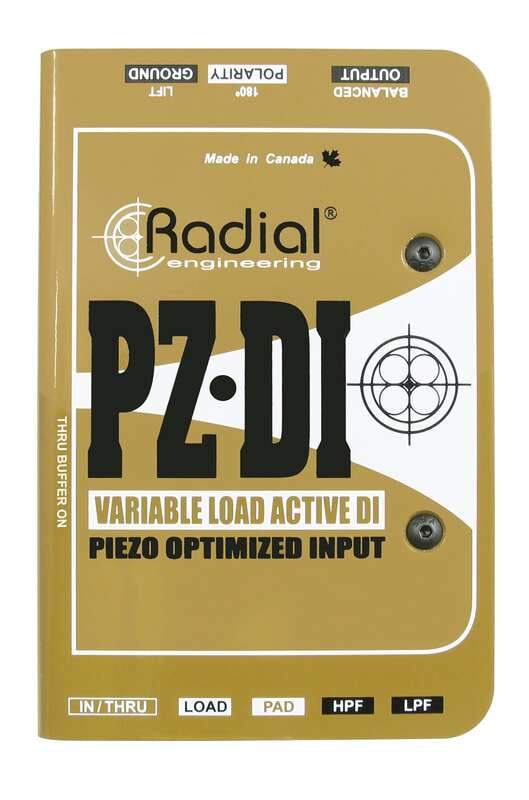

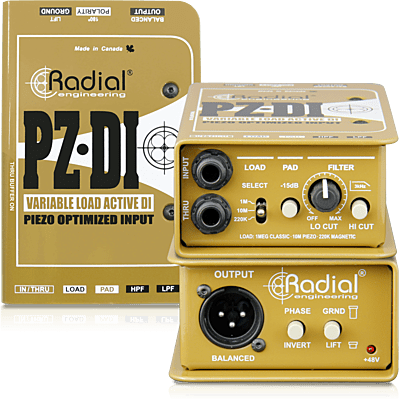

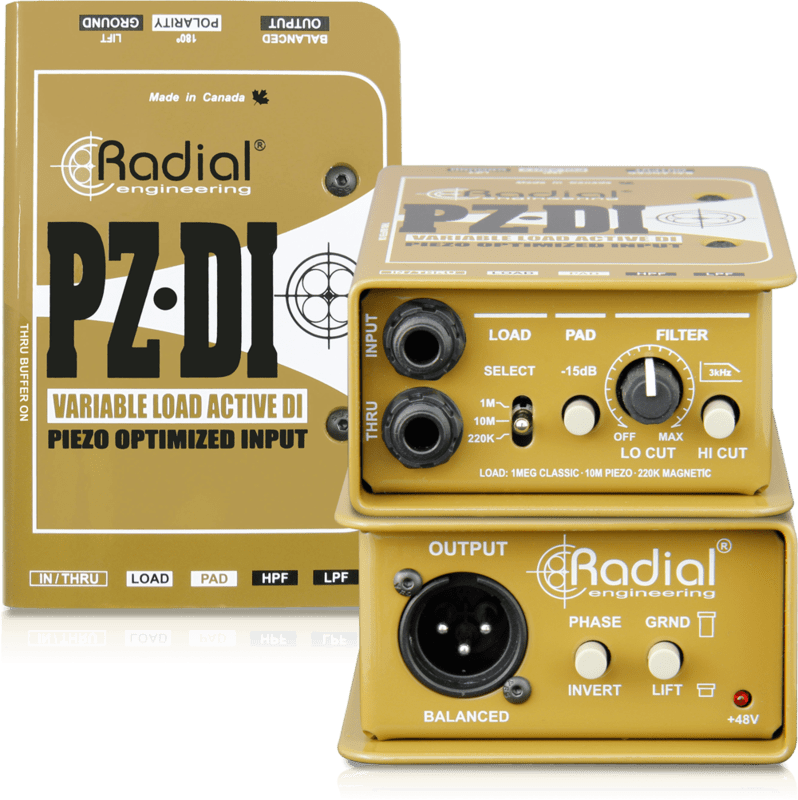

Acoustic instrument preamp, dual input w/ EQ, notch filter and Radial DI
Add to Cart
PZ-DI
PZ-DI
PZ-DI
PZ-DI
PZ-DI
PZ-DI
PZ-DI
PZ-DI
PZ-DI
PZ-DI
Product Details
Specifications

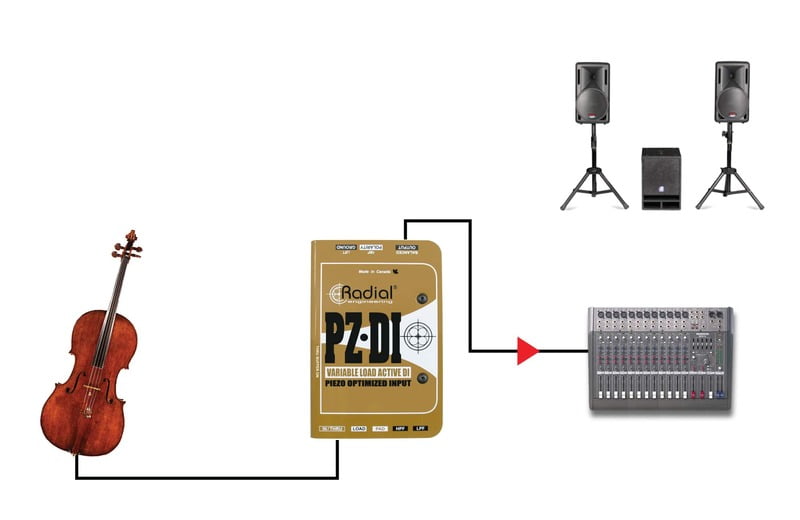

  • Optimized for orchestral instruments on a live stage
  • Adjustable load for piezo and magnetic pickups
  • Variable low-cut filter to control low frequency resonance
  • Powered by 48V phantom, no batteries required
Electrical Specifications
  • Frequency Response
    20Hz ~ 20kHz
  • Dynamic Range
    105dB
  • Total Harmonic Distortion
    0.02%
  • Input Impedance
    10M/1M/220K-Ohms
  • Output Impedance
    200 Ohms - nominal
  • Power
    48V phantom - proprietary digital switching
Physical Specifications

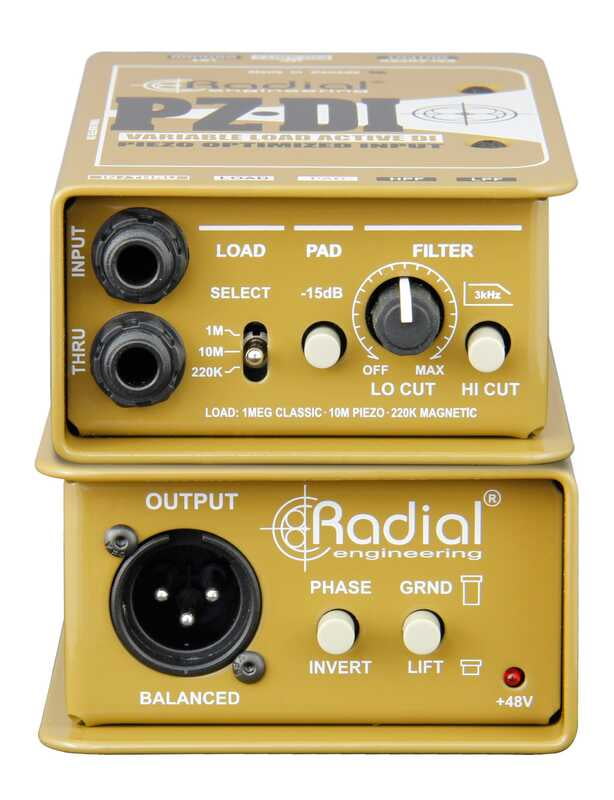

  • Input Connectors
    1/4" hi-Z input
  • Output Connectors
    XLR male output
  • Number of Channels
    Dual channel (stereo)
  • Dimensions (L x W x D)
    127 x 84 x 48mm (5.0" x 3.3" x 2")
  • Weight
    1.2lb (0.54kg)
