SB-1 Active

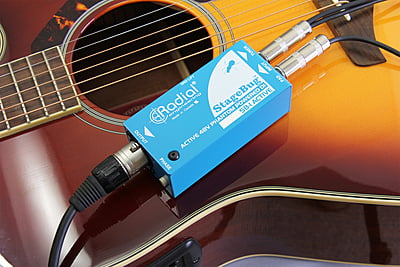

The StageBug SB-1 is a compact active direct box designed to fit inside a guitar case for artists who prefer to travel light.
Add to Cart
SB-1 Active
SB-1 Active
SB-1 Active
SB-1 Active
SB-1 Active
SB-1 Active
SB-1 Active
SB-1 Active
SB-1 Active
Product Details

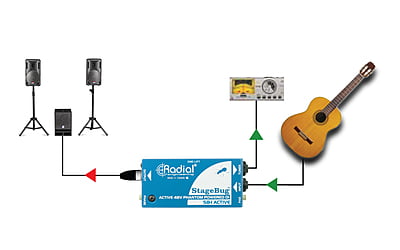

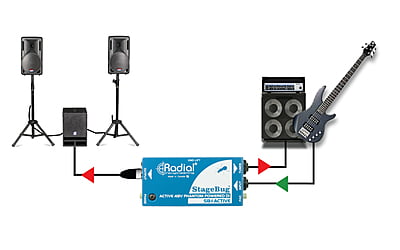

The design begins with standard ¼ instrument input with a thru-put to feed your tuner or your on-stage amp. The ultra-quiet active circuit at once converts the signal from high to low impedance to reduce susceptibility to noise. The signal is then buffered and balanced for long cable runs to the PA system. 48 volt phantom provides the power, so the SB-1 does not require batteries or external supply to make it work. You simply plug in and you are ready to go!
Electrical Specifications
  • Frequency Response
    20Hz ~ 20kHz
  • Dynamic Range
  • Total Harmonic Distortion
  • Phase Deviation
    25/12° Maximum
  • Input Impedance
  • Output Impedance
    330 Ohms
  • Maximum Input
  • Power
    48V phantom power, 5mA
Physical Specifications
  • Input Connectors
  • Output Connectors
    Balanced XLR-M
  • Number of Channels
    Single channel (mono)
  • Construction
    16 gauge steel chassis & outer shell
  • Dimensions (L x W x D)
    114mm x 47mm x 34mm
  • Weight
