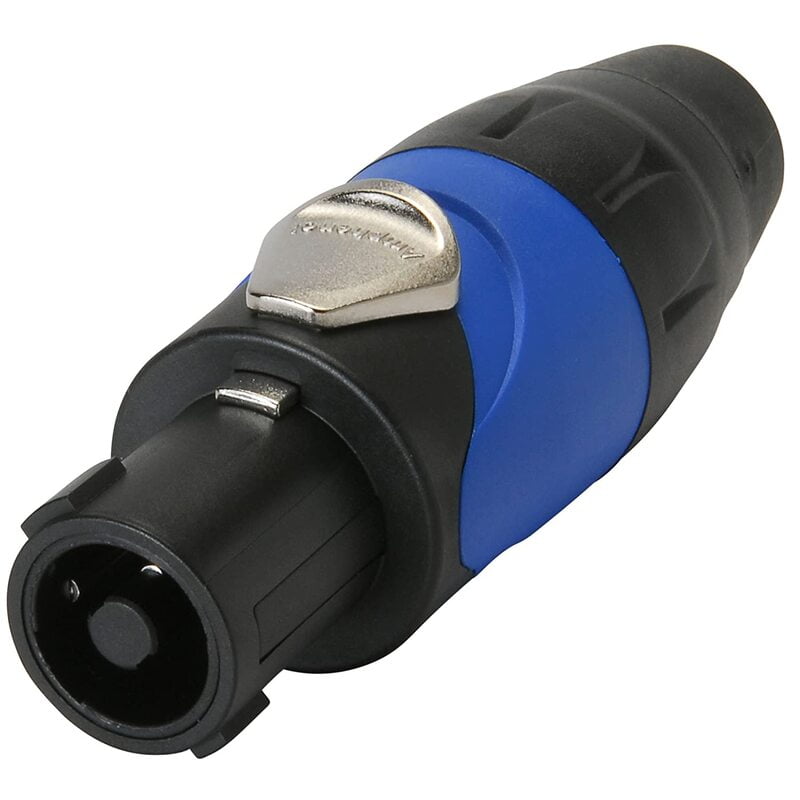

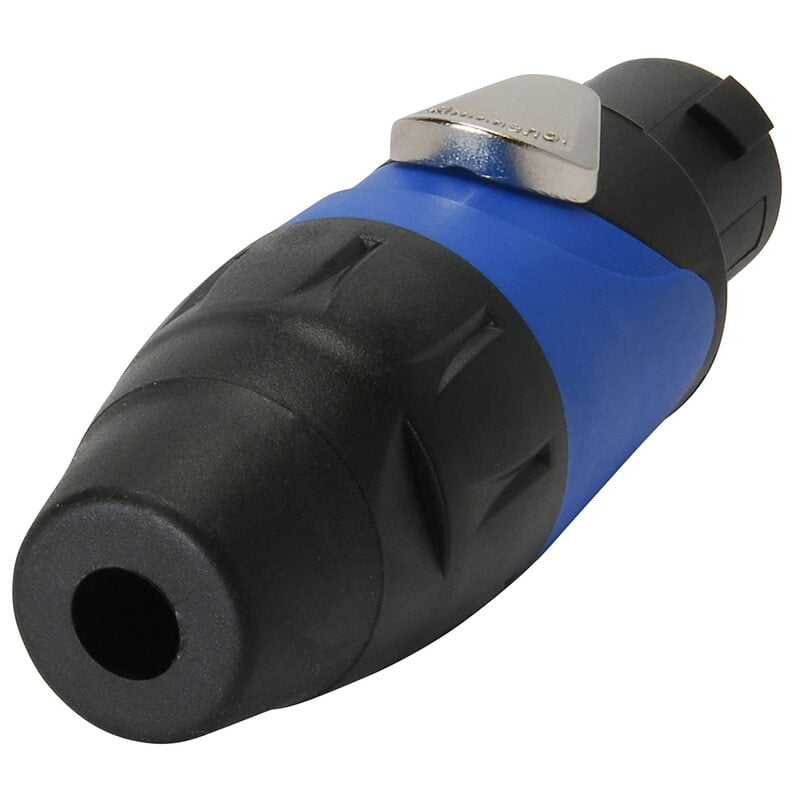

Plastic Plug Screw 4 Pole Connector.
Product ID: SP-4-F

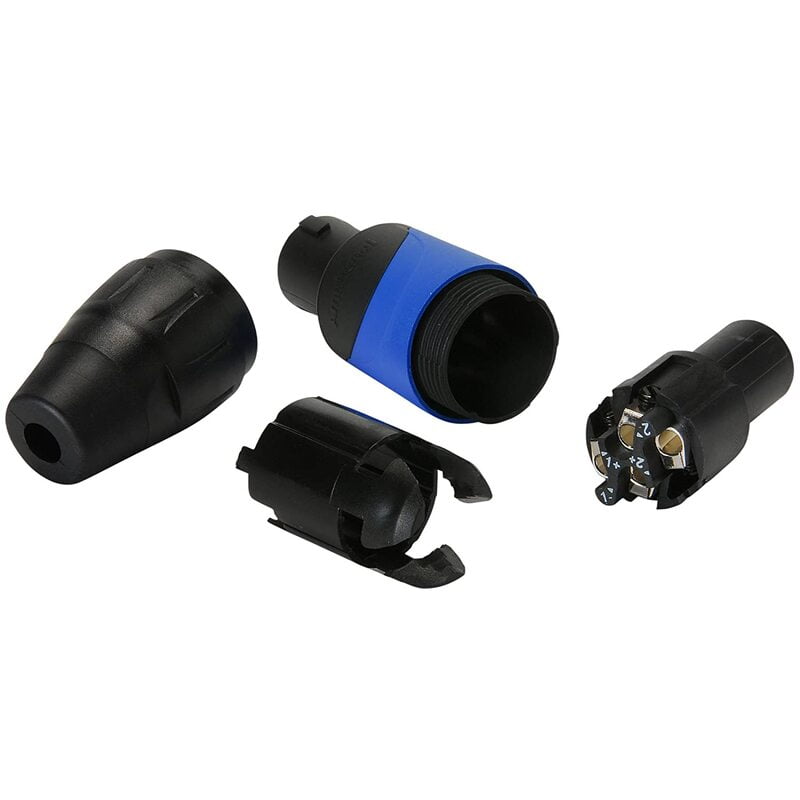

The Amphenol SP series loudspeaker/amplifier connectors are robust, versatile and easy to assemble. The contacts are designed to operate with high currents and inductive loads, and to prevent any damage from arcing when disconnected under load. All contacts are touch-proof. The Cable connectors have a very robust plastic shell, with Amphenol chuck-type cable clamp, with latch release. They use slot screws, so specialist tools are not required for field installation. Maximum wire size 4mm sq. Silver plated contacts.
- Part pategoryMale cable connector
- Number of positions (w/o PE)4
- Lower temperature(GC) -25
- Rated voltage(V) 133
- Rated current (40 °C)(A) 30
- Primary MaterialPlastic
- ApplicationsAudio, Aviation, Communication Systems
- Mounting TypeFree Hanging (In-Line)
- Shell MaterialPolyamide (PA66), Nylon 6/6, Glass Filled
- Contact Finish - MatingSilver
