Radial Engineering Trim-Two

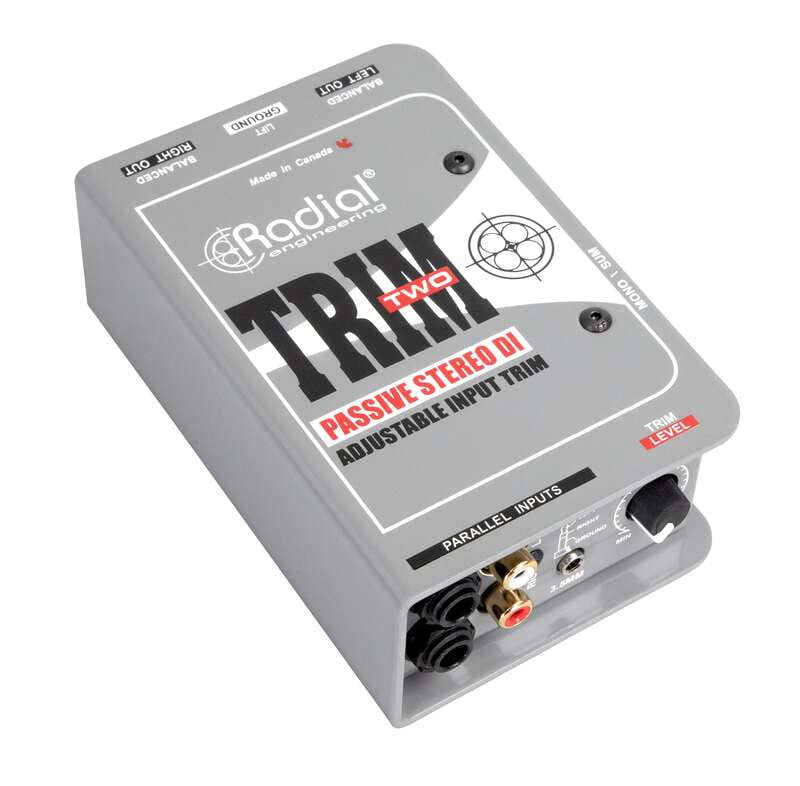

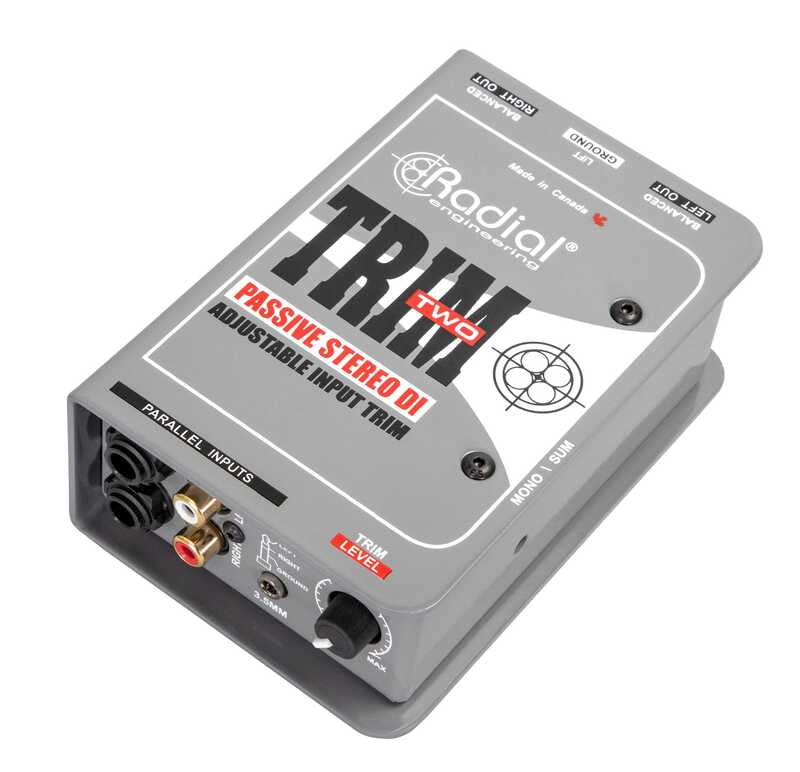

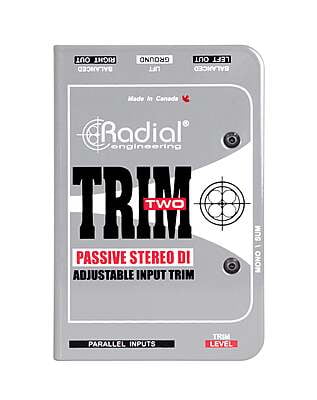

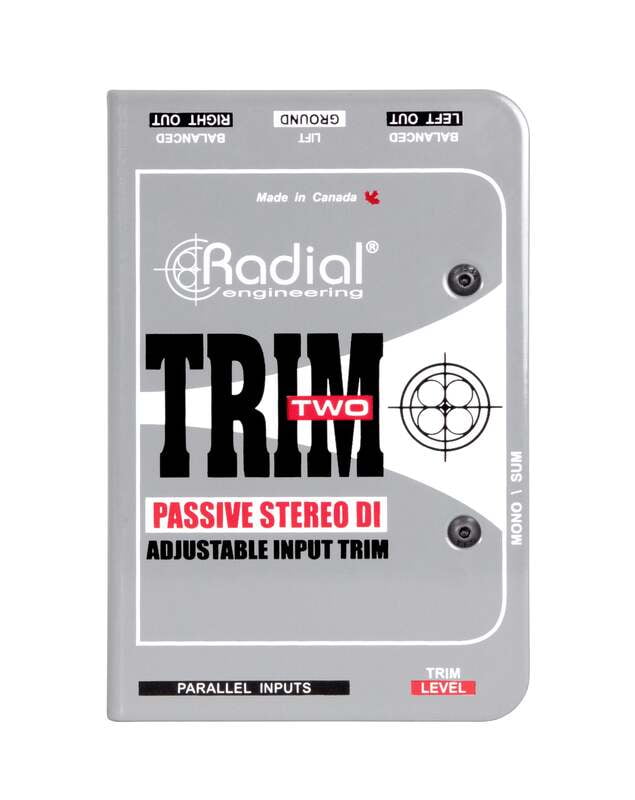

The Trim-Two™ is a passive stereo direct box designed for use with laptop computers and other consumer playback devices, eliminating hum and buzz from ground loops while providing an easy-access level control for quick adjustments on stage.
Product ID: Trim-Two










Non-returnable
GH¢4,211.96
EASY PAYMENT
MATCH EVERY PRICE
CUSTOMER SUPPORT
Choose Quantity

Talk to our product specialist
Product Details
Specifications

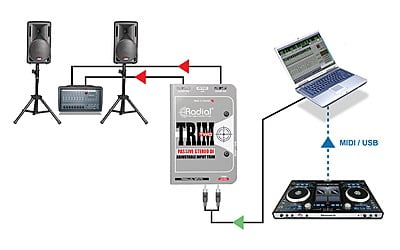

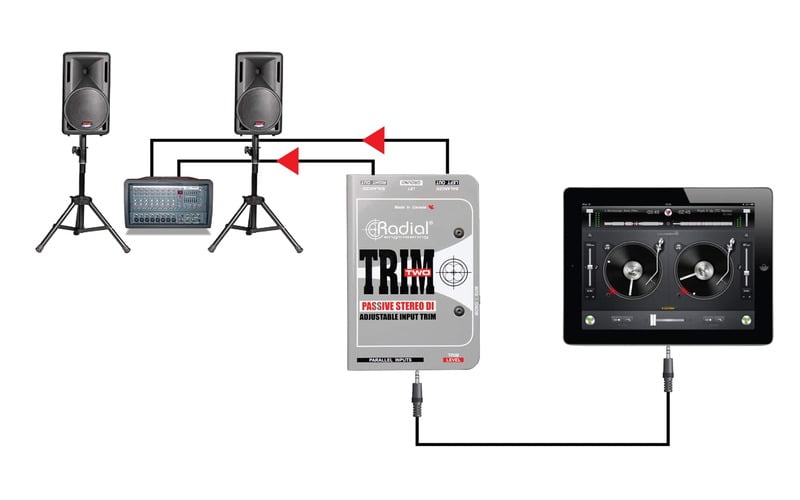

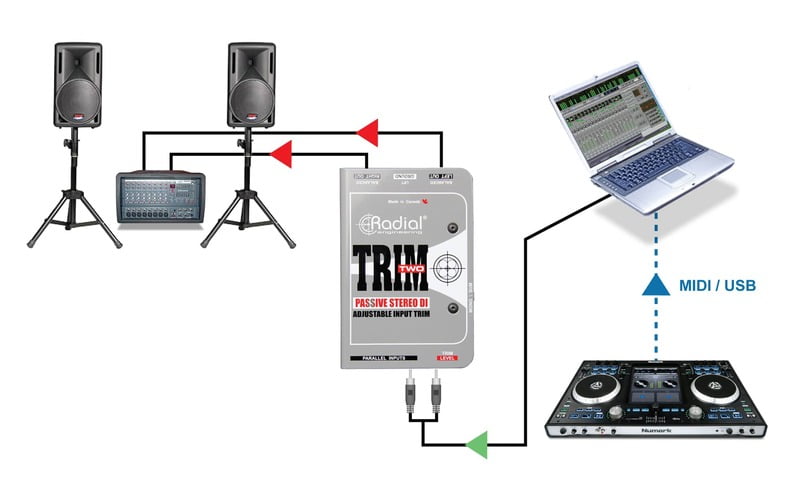

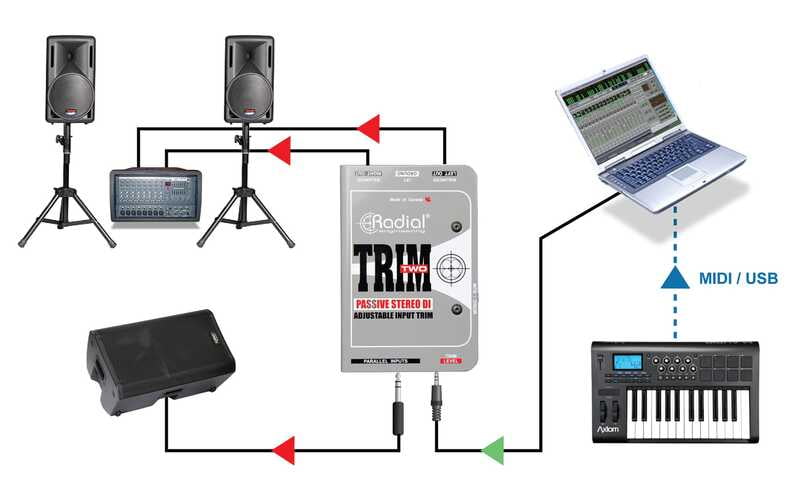

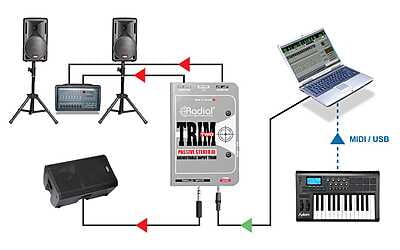

The Trim-Two allows you to connect any playback device and interface it with balanced pro audio equipment without signal loss or hum and buzz from ground loops. It features two transformers which isolate and balance the audio output from your source device, eliminating noise and allowing you to use long cable runs without signal degradation. A handy mono sum switch makes it easy to reduce the output channel count or send the same signal to two destinations at once, and an accessible level control gives you the ability to adjust levels in an instant. Multiple input connector types make it easy to hook up any consumer line level playback source, from laptops & smartphones to DJ equipment. The completely passive design means that you never have to worry about powering the Trim-Two, making it truly plug & play.
Electrical Specifications
- Frequency Response20Hz ~ 20kHz
- Dynamic Range100dB
- Total Harmonic Distortion0.009%
- Phase Deviation10°
- Input Impedance10K Ω, unbalanced
- Output Impedance2.8K Ω, balanced
- Maximum Input+20dB @ 20Hz
- PowerPassive, no power required
Physical Specifications

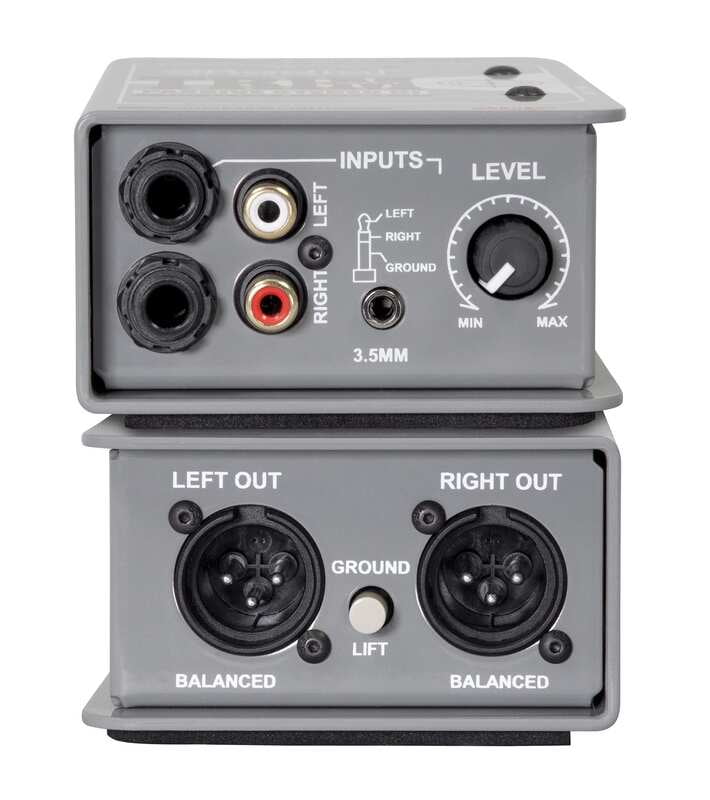

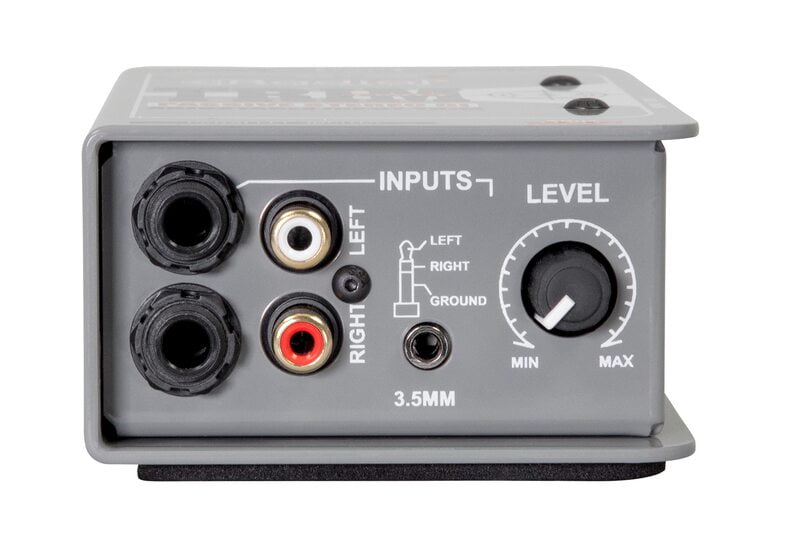

- Input Connectors1/4" RCA and 3.5mm input

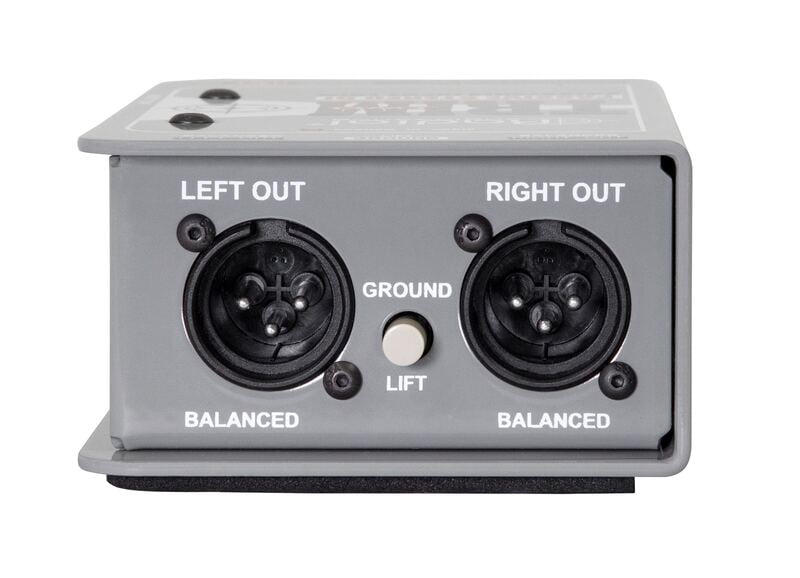

- Output ConnectorsXLR-M output
- Number of ChannelsDual channel (stereo)
- Construction14 gauge steel chassis & outer shell
- Dimensions (L x W x D)3.3" x 5.0" x 2" (84 x 127 x 48mm)
- Weight1.55 lbs (0.70 kg)
